Polybenzimidazole (PBI)

On 11 April 1996, a spark from routine welding work above the departure hall at Düsseldorf Airport landed on flammable foam insulation packed into the false ceiling, and by the time anyone below noticed, the ceiling itself was burning. Seventeen people died, most of them from the smoke rather than the flames, and the investigation that followed found a building where the fire brigade had not been told about the welding work, where sprinklers had never been installed, and where the material chosen to line the ceiling had been picked, above everything else, for being cheap.

A month later, an ocean away, a different kind of fire made the same point. On 11 May 1996, a ValuJet DC-9 climbing out of Miami filled with smoke from mislabeled oxygen generators packed loose in its cargo hold; the fire fed itself on the oxygen the canisters were producing and reached the cockpit’s control cables within minutes. All 110 people aboard were killed before the aircraft ever reached the Everglades. Two disasters a month apart, on two continents, arrived at the same lesson: it is rarely the fire itself that a building or an aircraft cannot survive. It is the ordinary material inside it, once that material starts to burn.

Plate I

By 1996, though, one polymer had already spent more than a decade answering exactly that problem. It had not been built for an airport or an airliner. It began, thirty-five years earlier, as the answer to a much narrower question asked by the United States Air Force, and it grew up almost entirely out of public view.

An Air Force Problem, Not a Space Problem

In the late 1950s, the Materials Laboratory at Wright-Patterson Air Force Base went looking for a fiber tough enough to survive the specific punishment of a drogue parachute: a brief, violent blast of heat as a canopy deployed at speed, far faster and far hotter than anything an ordinary nylon or aramid fiber was built to shrug off. The Laboratory brought the problem to Carl Shipp Marvel, a professor of organic chemistry at the University of Illinois who had spent three decades building the American academic foundations of polymer science and had earned, as a graduate student rushing to breakfast after all-night sessions in the lab, the nickname “Speed.” Marvel’s answer was to abandon flexible chains altogether and build a polymer almost entirely out of rigid, nitrogen-rich rings fused end to end. Working with Herward A. Vogel, first at Illinois and then at the University of Arizona in Tucson, he published the result in 1961 as “Polybenzimidazoles, new thermally stable polymers,” and the two men’s patent on the process, assigned to the University of Illinois Foundation, followed the year after.

Plate II

A Fireproof Ring, Not a Flexible Chain

Most of the polymers in this atlas earn their toughness from a long, flexible backbone that can bend, slide past its neighbors, and absorb an impact. PBI does the opposite: build the chain almost entirely out of stiff, fused rings, and there is nothing left in the backbone to bend. The synthesis follows that goal directly. 3,3’-diaminobenzidine, a small aromatic molecule carrying four amine groups in two adjacent pairs, is heated together with diphenyl isophthalate, the diphenyl ester of isophthalic acid, in a melt that climbs past two hundred and seventy degrees Celsius. The amine and ester groups first condense into an amide, releasing phenol; then, as the temperature climbs further under a blanket of nitrogen, each amide closes into a five-membered ring by giving up a molecule of water, fusing a nitrogen-rich imidazole onto the aromatic core it grew from. Two such rings close per repeat unit, one on either side of a central phenyl group, leaving a chain built from flat, chemically stubborn rings joined end to end rather than a flexible strand with rings hanging off it. There is no soft, flexible link left in the middle for heat to find and attack first.

The Fire That Made It Matter

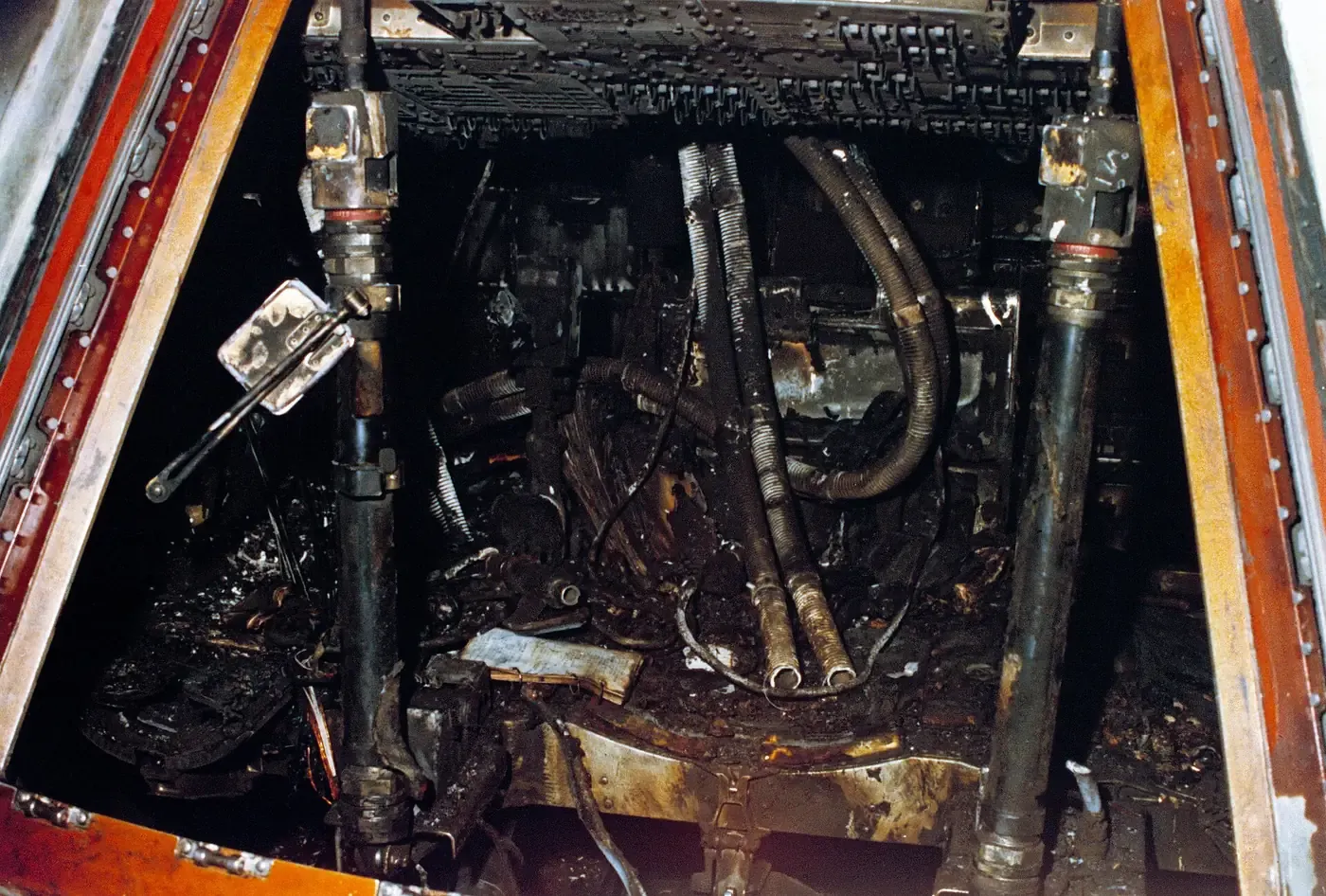

For its first six years, PBI stayed almost entirely a laboratory curiosity, tested by NASA and the Air Force Materials Laboratory from 1963 onward but adopted by nobody. That changed on 27 January 1967, when a spark from chafed wiring inside the Apollo 1 command module ignited flammable material in the cabin’s pure-oxygen atmosphere during a routine launch-pad test. The fire spread in seconds; the crew, Virgil “Gus” Grissom, Ed White, and Roger Chaffee, could not open the hatch in time, and all three died. The subsequent investigation found a spacecraft interior built, like nearly everything else in 1967, from ordinary flammable materials, and NASA’s response reached well beyond redesigning the hatch: the agency and the Air Force turned to Celanese Corporation to develop Marvel’s decade-old chemistry into a fiber anyone could actually spin, weave, and wear. The Air Force formally selected PBI for thermal protective use in 1969.

Plate III

From Command Module to Rock Hill, South Carolina

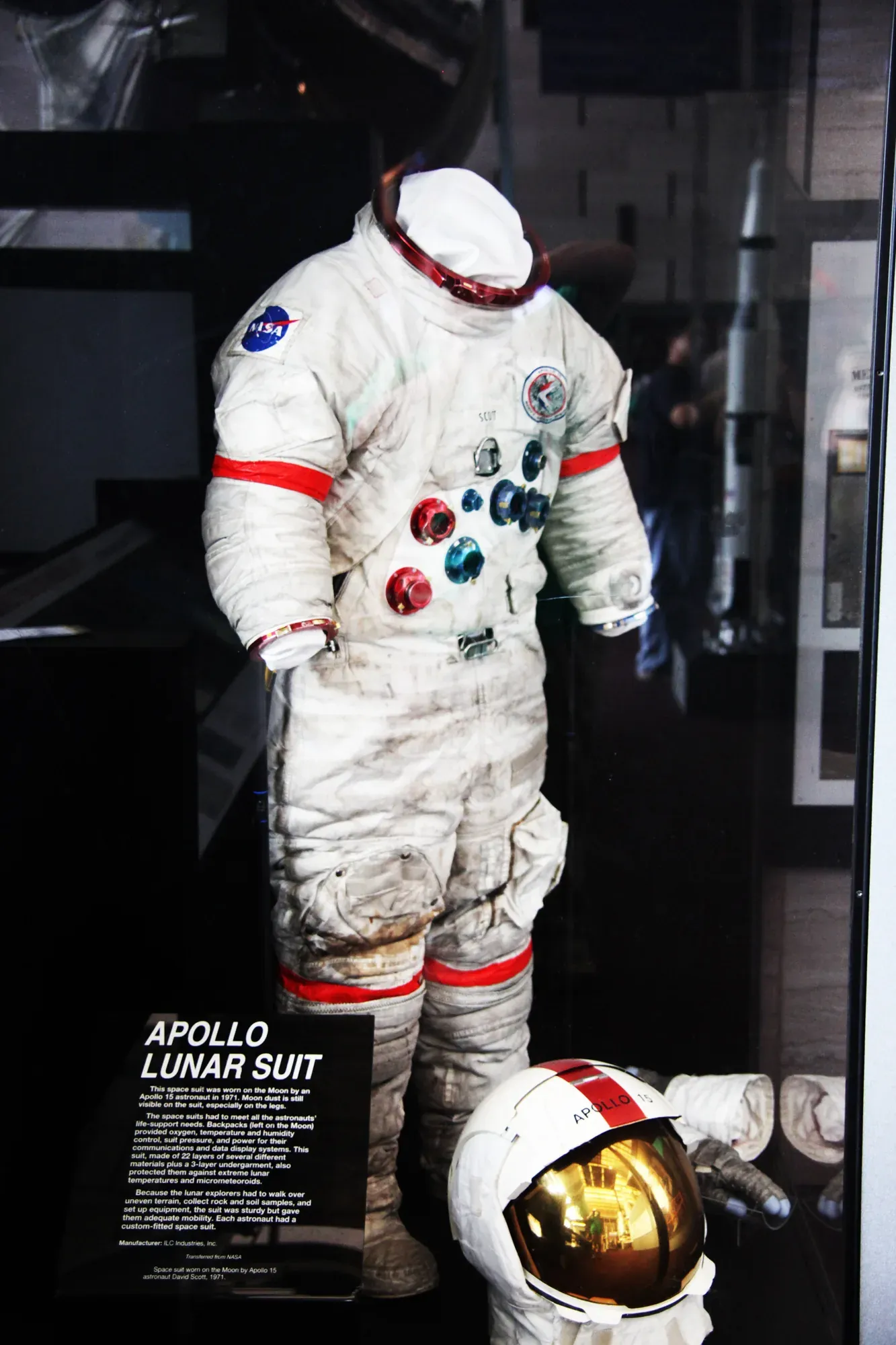

Celanese spent the better part of two decades turning the fiber into something a factory could actually make at scale, and PBI fabric found its way into NASA’s spaceflight program well before it reached the general public: astronaut suits worn on Apollo, Skylab, and the early Space Shuttle missions carried a layer of PBI cloth beneath the outer shell, added after 1967 as extra insurance against exactly the kind of fire that had killed Grissom, White, and Chaffee. Commercial production did not begin until 1983, when a dedicated Celanese plant in Rock Hill, South Carolina, produced its first bale of PBI fiber that March. Blended with aramid fiber into a fabric later sold as PBI Gold, it began moving into structural firefighting gear through the 1980s and early 1990s; the New York City Fire Department specified it for turnout coats in 1994, well ahead of most of its peers.

Plate IV

What the Rings Buy

PBI settles at a density only a little above water, in line with the other aromatic engineering polymers in this atlas, but almost nothing else about it behaves like an ordinary plastic. Where a phenolic thermoset survives heat by refusing to melt at all, PBI does something stranger still: even the faint transition a fiber shows under careful testing is not really a melting point in the usual sense, and in ordinary use the material simply holds its shape, unchanged, until it finally gets hot enough to char. Heat that would soften almost any other organic polymer leaves it essentially untouched, and it can survive a brief plunge into temperatures that would turn aluminium into a puddle without catching fire itself. Set a flame to it directly and it will not feed the fire: it needs far more oxygen than ordinary air supplies before it will sustain a flame on its own, which is the entire reason it ended up in a firefighter’s coat rather than only in a laboratory notebook.

That resilience comes with real trade-offs. A molded or cast piece of PBI is stiff and takes almost no stretch before it fails, closer to glass than to rubber; spun into fiber, the same chemistry becomes markedly more forgiving, which is why turnout gear can be woven from it rather than only molded. It shrugs off oils, greases, and most ordinary organic solvents without a mark, and holds up reasonably well against alcohols and hydrocarbons too, but strong acids and strong alkalis are a genuine weakness, the one place this famously stubborn material can actually be attacked. It is also unusually thirsty for an aromatic polymer this heat-resistant: dry PBI film is an excellent electrical insulator, but soak the same material in acid and it does something almost no other insulator can, switching to carrying protons instead of blocking them. That is the property behind its newer role as a fuel-cell membrane.

Firefighters, Not Astronauts

The gear the Air Force adopted for pilots and NASA sewed into spacesuits ended up doing its most lasting work somewhere far more ordinary: on the backs of structural firefighters, who face a version of the drogue-parachute problem Marvel was first asked to solve in the 1950s, a short, violent blast of heat that an ordinary fiber cannot survive intact. By 1996, PBI-blend turnout gear was already becoming the standard many American fire departments reached for, a solution that had existed, quietly, for over a decade, while a welding spark in a German airport terminal and a mislabeled canister over the Everglades were reminding the rest of the world, twice in six weeks, exactly why it mattered.

Plate V
