FX-05 Xiuhcoatl

The FX-05 is Mexico’s domestically designed and built service rifle, developed by the army’s own Dirección General de Industria Militar after a planned licensed-production line for the Heckler & Koch G36 was cancelled in favour of a cheaper, wholly Mexican alternative. Development ran for sixteen months from 2005 under the army’s applied research centre, CIADTIM, and the rifle was presented publicly at the September 2006 military parade in the hands of Mexico’s Special Forces Airmobile Group, entering wider service in 2008.

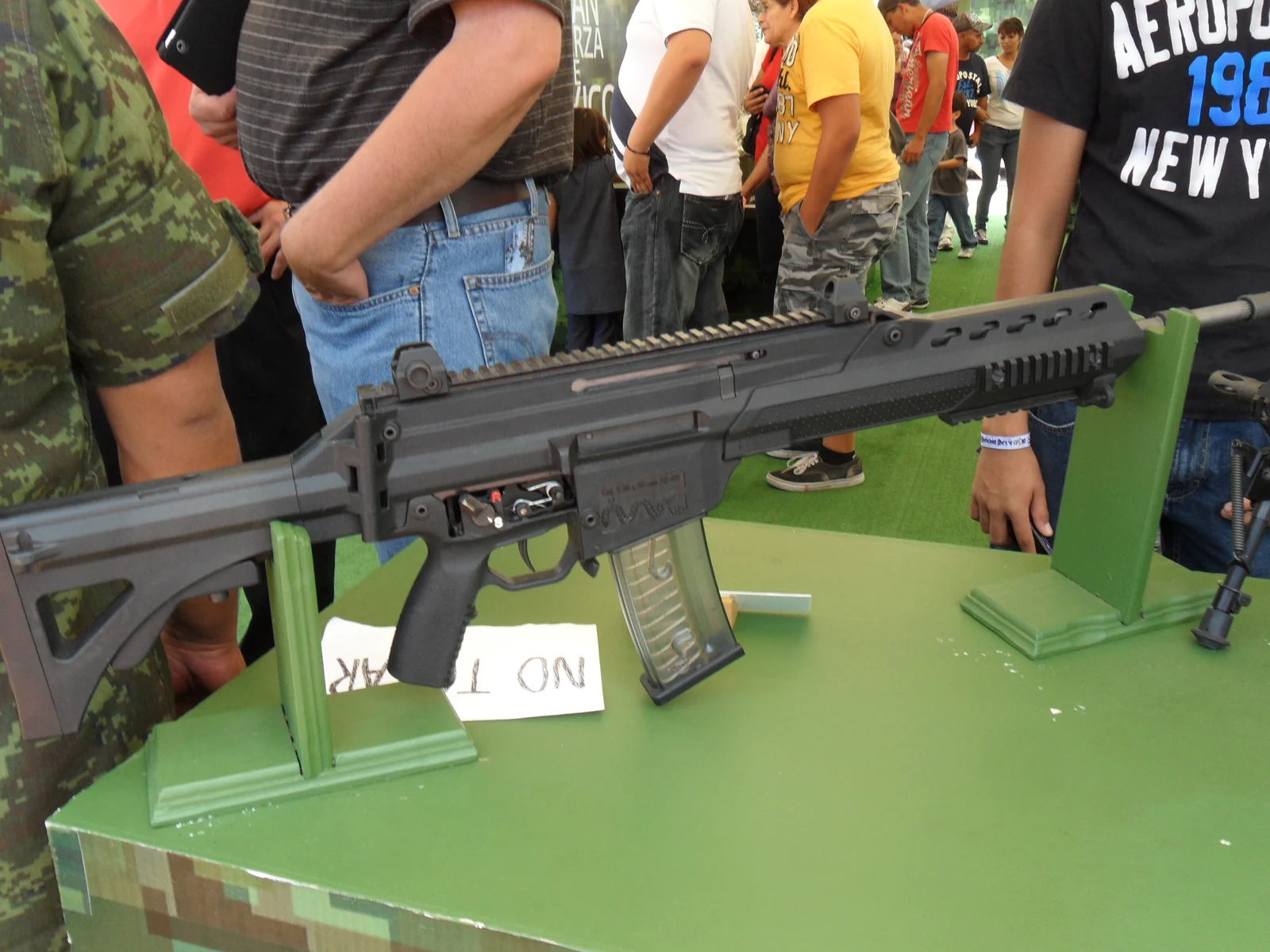

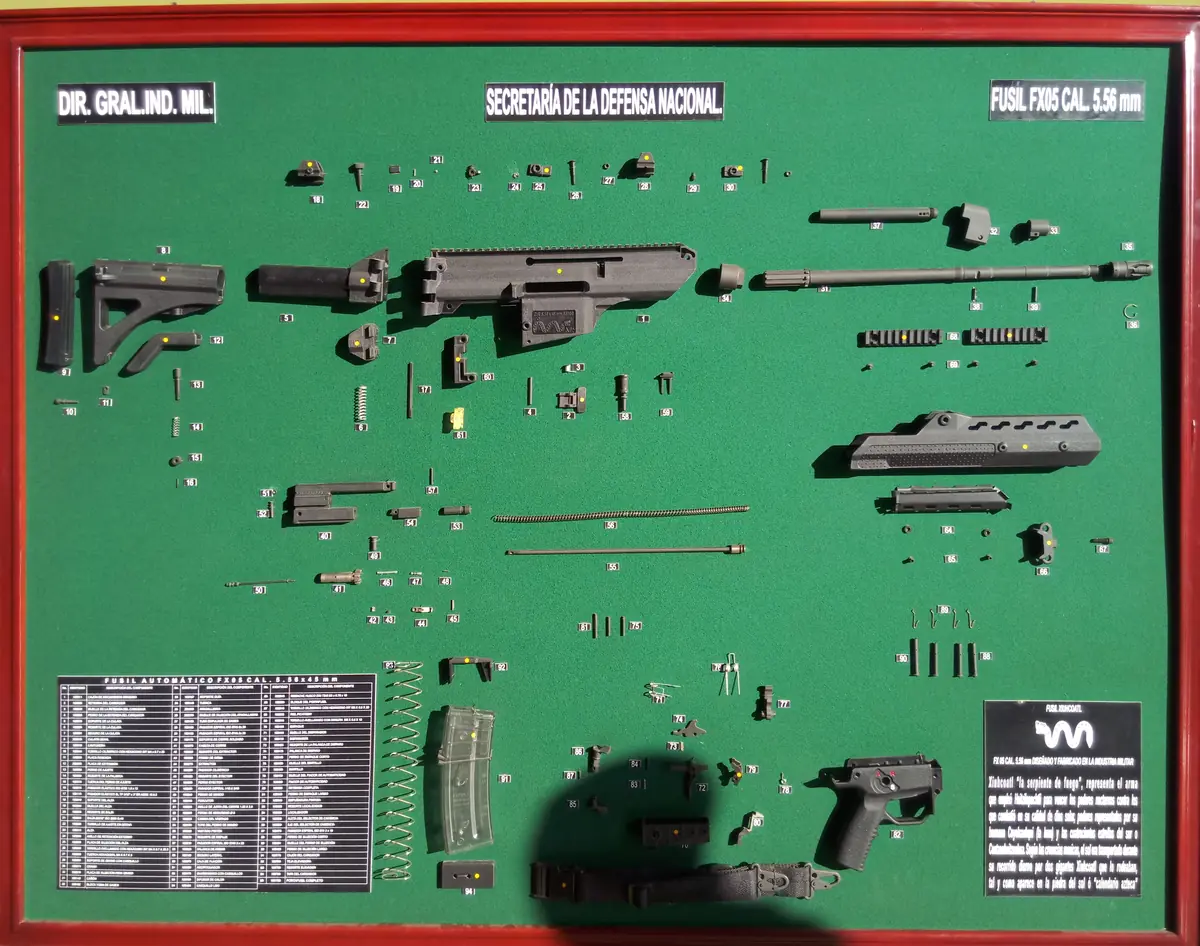

The FX-05’s receiver was styled closely enough on the G36’s that Heckler & Koch raised a patent infringement claim in 2007; after inspecting the rifle’s internals, the German firm concluded there was no infringement and dropped the matter, because the mechanism inside differs substantially from the G36’s. Where the G36 uses a short-stroke gas system, the FX-05 uses a long-stroke gas piston mounted above the barrel driving a multi-lugged rotating bolt, an arrangement closer in principle to the AK pattern, and the external resemblance to the G36 is believed to have been deliberate, to ease commonality with the G36s already issued to many Mexican police forces. The rifle’s barrel uses polygonal rifling rather than conventional lands and grooves, one of relatively few production service rifles built that way, and its receiver is a carbon-fibre-reinforced polymer over a titanium frame.

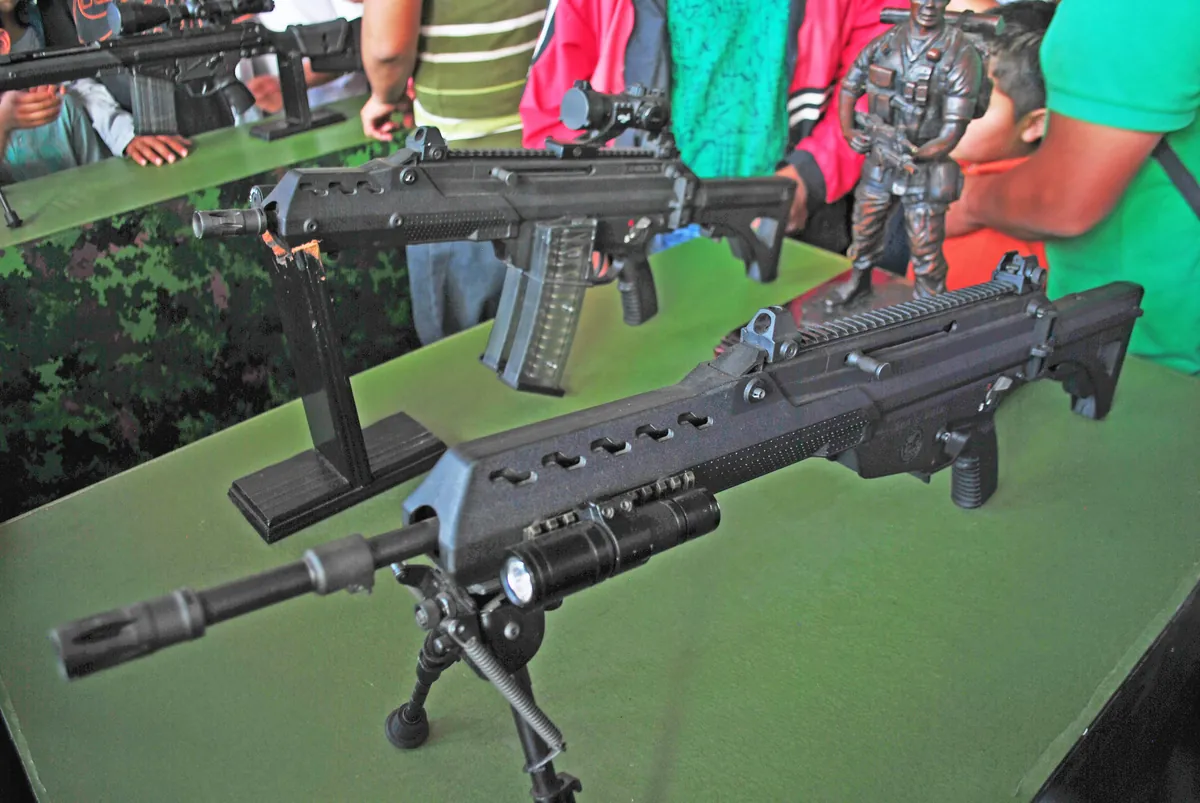

It is chambered for 5.56×45mm NATO and offered in two length configurations covered here as variants: a full-length assault rifle and a shorter carbine, which differ only in barrel length, overall length and mass. The manufacturer has also built a short carbine with a shortened fore-end and a sharpshooter configuration with a fixed adjustable stock in place of the standard folding one; neither is documented with sourced figures independent of the standard configurations and neither is represented in this entry’s data. A submachine-gun-length derivative shown publicly in 2016 changes the type of arm entirely and is likewise not covered here. The FX-05 has armed the Mexican Armed Forces and the National Guard, and has also surfaced in the hands of organised-crime groups in Mexico’s drug conflict.

No maker specification sheet for the FX-05 is published; every dimension on this page comes from an uncited Wikipedia infobox figure and is recorded as estimated rather than verified. No source pairs a muzzle velocity with the barrel length it was measured over, so no velocity is recorded. No rifling twist rate is published, and no logo or wordmark for the manufacturer, a directorate of Mexico’s defence secretariat rather than a commercial brand, could be sourced.
