Submachine gun

PP-2000

KBP Instrument Design BureauPost-Cold War

CompareAdd to Armory
A compact black bullpup-style submachine gun lying on a white surface, with a wire skeleton stock folded back along the top of the receiver, a triangular integral trigger guard doubling as a foregrip, and a green sling attached at the rear.

Image credit

Title
File:PP-2000 (350-07).jpg
Author
Vitaly V. Kuzmin(attribution required)
Licence
CC BY-SA 4.0
Source
https://commons.wikimedia.org/wiki/File:PP-2000_(350-07).jpg
A PP-2000 with its wire shoulder stock folded and a sling fitted.
Muzzle energy

How Muzzle energy is calculated

E = ½ · m · v²

Inputs

  • m7.452 g115.0 grverifiedsource115 gr as published, converted to grams.
  • v359.7 m/s1,180 fpsverifiedMeasured with a 101.6 mm barrel, not this arm's 182 mm. Velocity outside the sourced range is not projected.

1 of 2 inputs link to their source.

482.1 J355.6 ft·lbf
Muzzle velocity

How Muzzle velocity is calculated

nearest sourced barrel length — no extrapolation (SPEC.md §8.2)

Inputs

  • v at 101.6 mm359.7 m/s1,180 fpsverifiedsource1180 fps as published.

Assumptions

  • This figure belongs to a 101.6 mm barrel. It is shown because it is the closest measurement that exists, not because it applies here.

1 of 1 inputs link to their source.

359.7 m/s1,180 fps
Loaded mass

How Loaded mass is calculated

m_loaded = m_empty + m_magazine + n · m_cartridge

Not calculated: m_magazine has no sourced figure yet. Nothing is substituted for a missing input.

Assumptions

  • One magazine, filled to the stated capacity. Spare magazines, optics, slings and lights are the owner’s, not the arm’s.

2 of 4 inputs link to their source.

not recordednot recorded
Free recoil

How Free recoil is calculated

E_recoil = ½ · m_firearm · v_recoil²

Inputs

  • m_firearm1.4 kg3.086 lbverifiedsourceManufacturer's own specification table, "Weight without magazine, kg": 1.4.
  • v_recoil1.915 m/s6.282 fpsestimated

Assumptions

  • Propellant gas momentum is excluded: ARMAG does not record charge weights (SPEC.md §14). This is therefore a lower bound on the real free recoil, consistent between entries but smaller than a figure that includes the gas term.
  • Free recoil: the arm is unrestrained. Stock design, muzzle devices, stance and shooter mass are not modelled, because none of them is a property of the arm.

1 of 2 inputs link to their source.

2.566 J1.893 ft·lbfestimated
Capacity

How Capacity is calculated

as published for the primary chambering

Inputs

  • capacity44verifiedsourceManufacturer's own specification table lists 20- and 44-round magazines; the larger is recorded here. The PP-2000 is also issued with 9×19mm 7N21 and 7N31 armour-piercing +P+ loads not modelled as separate cartridge entries on this site.

1 of 1 inputs link to their source.

44

Derived figures

Computed from the sourced values above. Open ƒ on any figure for the formula, its inputs, and the assumptions it makes.

Momentum

How Momentum is calculated

p = m · v

Inputs

  • m7.452 g115.0 grverifiedsource115 gr as published, converted to grams.
  • v359.7 m/s1,180 fpsverifiedMeasured with a 101.6 mm barrel, not this arm's 182 mm. Velocity outside the sourced range is not projected.

1 of 2 inputs link to their source.

2.680 kg·m/s
Sectional density

How Sectional density is calculated

SD = mass(gr) / (7000 · diameter(in)²)

Inputs

  • mass7.452 g115.0 grverifiedsource115 gr as published, converted to grams.
  • diameter9.03 mm0.3555 inverifiedsourceCartridge maximum, dimension G1.

Assumptions

  • Reported in the conventional lb/in² so it is directly comparable with published figures.

2 of 2 inputs link to their source.

0.1300 lb/in²
Power factor

How Power factor is calculated

PF = mass(gr) · velocity(fps) / 1000

Inputs

  • mass7.452 g115.0 grverifiedsource115 gr as published, converted to grams.
  • velocity359.7 m/s1,180 fpsverifiedMeasured with a 101.6 mm barrel, not this arm's 182 mm. Velocity outside the sourced range is not projected.

Assumptions

  • A competition classification defined by the IPSC and USPSA rulebooks, stated in their units. It describes a scoring category, not an effect.

1 of 2 inputs link to their source.

135.7 gr·fps/1000
Magazine dump

How Magazine dump is calculated

t = (n − 1) / (rpm / 60)

Inputs

  • n44verifiedsourceManufacturer's own specification table lists 20- and 44-round magazines; the larger is recorded here. The PP-2000 is also issued with 9×19mm 7N21 and 7N31 armour-piercing +P+ loads not modelled as separate cartridge entries on this site.
  • rpm700 rpmestimatedsourceManufacturer's own specification table publishes a range of 600-800 rds/min; recorded here as the midpoint, per this site's rule that a published range is not a single verified figure.

Assumptions

  • Cyclic rate held for the whole magazine, no stoppages, trigger held down. A theoretical figure for comparing mechanisms, not a measured one.

2 of 2 inputs link to their source.

3.686 sestimated
Sight error at 1 mm

How Sight error at 1 mm is calculated

θ = atan(misalignment / sight radius)

Not calculated: sight radius has no sourced figure yet. Nothing is substituted for a missing input.

Assumptions

  • Shows what a stated aiming error costs. The misalignment is the reader’s figure; the site does not claim how well anyone aims.

No input on this calculation carries a clickable source yet.

not recordednot recorded

Specifications

Every row here is generated from the schema, so a figure recorded on this entry cannot be missing from the table — and the same rows, read the same way, are what the comparison shows.

Identity
Type
Submachine gun
Action
Self-loading
Fire modes
  • Semi-automatic
  • Fully automatic
Operating system
Blowback, simple
Feed
Roles
Designed in
Russia
Produced in
Introduced
2006
Production
not recorded
Dimensions and mass
Mass, empty
1.4 kg3.086 lbsource

Manufacturer's own specification table, "Weight without magazine, kg": 1.4.

Magazine, empty
not recorded
Length
555 mm21.85 insource

Manufacturer's own specification table, "Overall length with shoulder rest, mm": 555 max.

Length, folded
not recorded
Width
not recorded
Height
not recorded
Barrel length
182 mm7.165 inestimatedsource

Cited article's infobox carries no inline citation for this figure, and it does not appear on the manufacturer's own archived specification page.

Sights and rifling
Sight radius
not recorded
Sight height over bore
not recorded
Rifling twist
not recorded
Twist direction
not recorded
Grooves
not recorded
Sight graduation
not recorded
Operation
Cyclic rate
700 rpmestimatedsource

Manufacturer's own specification table publishes a range of 600-800 rds/min; recorded here as the midpoint, per this site's rule that a published range is not a single verified figure.

Trigger pull
not recorded
Effective range
not recorded
Units produced
not recorded
Launch price
not recorded

Chamberings

Scale

A to-scale outline against family siblings. The dimensions are sourced; the shape is a representative outline for the type, and says so.

  • PP-2000555 mm21.85 inheight not recorded

Representative outline — the dimensions are sourced, the shape is not. Overall length, and barrel length where recorded, are drawn from this entry's own figures; the profile is a generic one for the firearm type and says nothing about this arm's actual contours. PP-2000 records no height, so its outline is drawn at the type's proportion — that height is part of the shape, not a measurement.

Compare this against any other entry →

Gallery

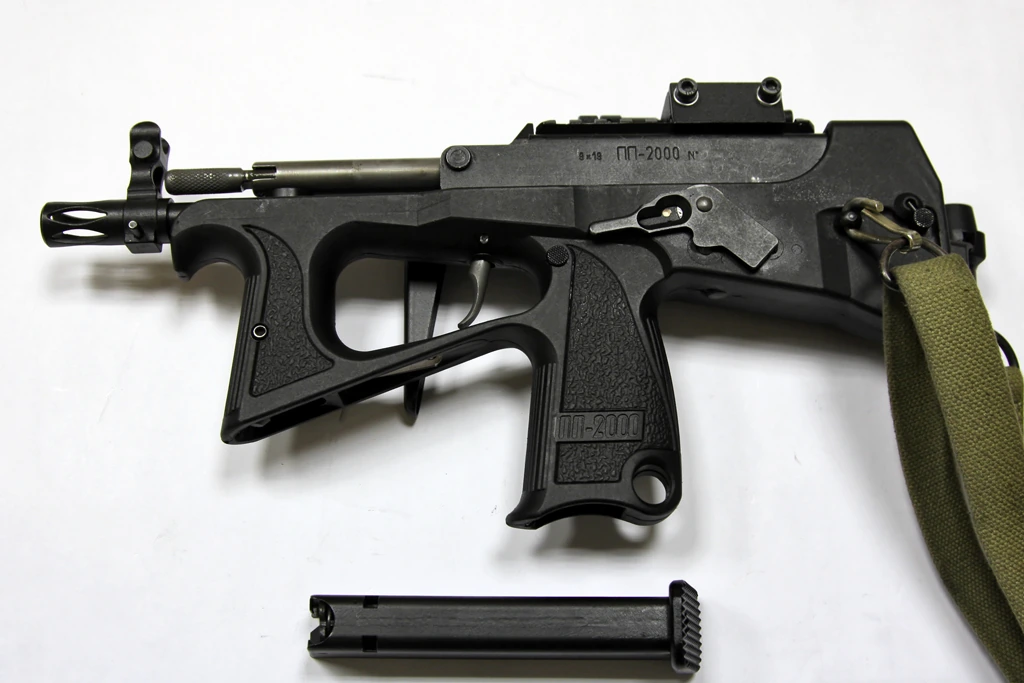

A PP-2000 submachine gun lying on a white surface with its box magazine removed and set below the grip, showing the open magazine well in the pistol grip.

Image credit

Title
File:PP-2000 with detached magazine.jpg
Author
Vitaly Kuzmin(attribution required)
Licence
CC BY-SA 3.0
Source
https://commons.wikimedia.org/wiki/File:PP-2000_with_detached_magazine.jpg
A PP-2000 with its magazine detached, showing the magazine housed in the pistol grip.

Detail

The PP-2000 is a bullpup, straight-blowback submachine gun designed at KBP Instrument Design Bureau in Tula between 1993 and 1997 and put into production in 2006, aimed at Russian police and special-purpose units who needed something smaller than a rifle but harder-hitting than a standard pistol. Its magazine sits inside the pistol grip and its bolt runs back over the top of the barrel rather than behind it, which is what lets a gun with a full-length barrel fold down to little more than the length of its grip and trigger group.

Its most distinctive feature is a triangular polymer frame around the trigger guard that doubles as a foregrip, replacing the separate forend most submachine guns need, and a wire skeleton stock that folds forward along the top of the receiver rather than to the side. KBP designed the gun around a family of dedicated 9×19mm loads as much as around the mechanism itself: alongside standard 9×19mm Parabellum, it is issued with 7N21 and 7N31 +P+ armour-piercing loads developed for the same programme, neither of which is modelled as a separate cartridge entry on this site.

This entry’s weight, overall length and magazine capacity come from the manufacturer’s own specification page, reached through an archived 2012 snapshot since the live site is no longer reachable. Its cyclic rate is published there only as a 600–800 rounds-per-minute range and is recorded here as the midpoint, per this site’s rule that a range is not a single verified figure. No source — manufacturer or Wikipedia — states a barrel length with a citation behind it, so that figure is recorded as estimated.

References

This entry's own bibliography. Every citation key on this page resolves into this list.

  1. PP-2000 · Wikipedia · 1372043926 · read 2026-09-01 · CC BY-SA 4.0
  2. PP-2000 (manufacturer specification page, archived 2012-04-17) · KBP Instrument Design Bureau · read 2026-09-01
