.32 S&W Long
Introduced 1896Smith & WessonCIP standard
Also known as .32 Colt New Police: the same cartridge under different names, all of which find this page.
Dimensions and pressure
Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.
Identity
- Designed by
- Smith & Wesson
- Introduced
- 1896
- Production
- not recorded
- Standards body
- C.I.P.
- Case type
- Rimmed
- Case shape
- Straight
Dimensions
- Bullet diameter
- 8 mm0.3150 insource
Dimension G1.
- Bore diameter
- not recorded
- Case length
- 23.37 mm0.9201 insource
Cartridge maximum, dimension L3.
- Overall length
- 32.51 mm1.280 insource
Dimension L6.
- Rim diameter
- 9.53 mm0.3752 insource
Dimension R1.
- Neck diameter
- not recorded
- Base diameter
- 8.56 mm0.3370 insource
Dimension P1.
Pressure
- Maximum pressure
- 100 MPa14,504 psisource
Pmax 1000 bar, C.I.P. method.
- Pressure standard
- C.I.P.
SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.
Loads
Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.
98 gr LHBWC
- Bullet mass
- 6.35 g98.00 grestimated
98 gr bullet, from a handloading data page (Hodgdon), via the Wikipedia infobox. The published velocity on that page is a maximum-handload result tied to a specific powder charge, not a factory-ammunition figure, so it is not recorded.
- Cartridge mass
- not recorded
- Bullet type
- LHBWC
- G1 BC
- not recorded
- G7 BC
- not recorded
90 gr LSWC
- Bullet mass
- 5.83 g89.97 grestimated
90 gr bullet, from the same handloading data page, via the Wikipedia infobox. Velocity not recorded for the same reason.
- Cartridge mass
- not recorded
- Bullet type
- LSWC
- G1 BC
- not recorded
- G7 BC
- not recorded
85 gr JHP
- Bullet mass
- 5.51 g85.03 grestimated
85 gr bullet, from the same handloading data page, via the Wikipedia infobox. Velocity not recorded for the same reason.
- Cartridge mass
- not recorded
- Bullet type
- JHP
- G1 BC
- not recorded
- G7 BC
- not recorded
Chambered in
Computed from every entry that lists this cartridge. Nothing here is hand-maintained.
No entry on the site is chambered in it yet.

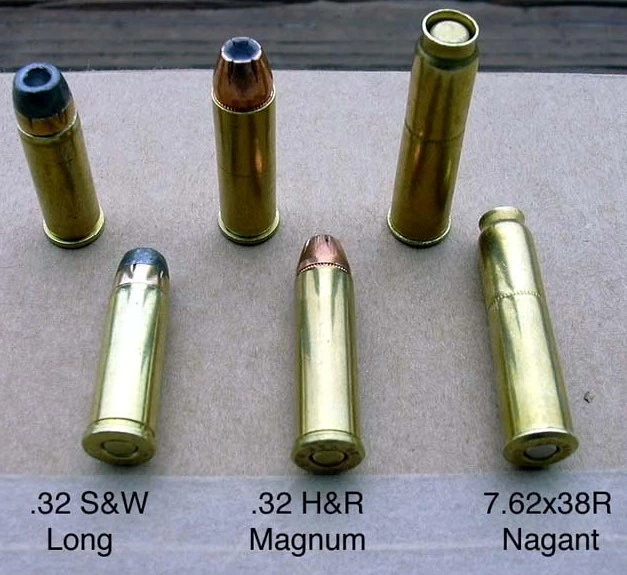

Gallery
Image credit
- Title
- File:76238comparison.jpg
- Author
- Drake00(attribution required)
- Licence
- CC BY 3.0
- Source
- https://commons.wikimedia.org/wiki/File:76238comparison.jpg
Detail
The .32 S&W Long is a rimmed, straight-walled revolver cartridge Smith & Wesson introduced in 1896 by lengthening its own earlier .32 S&W case. Colt chambered the same round in its own revolvers under the name .32 Colt New Police, and both names describe the identical cartridge rather than two different rounds.
The round was widely chambered in small- and medium-frame pocket and police revolvers from both makers through the first half of the twentieth century, valued for its light recoil compared to larger service revolver cartridges of the period. It remained in production for target shooting and small-frame defensive revolvers, and its case later formed the basis for the longer, higher- pressure .32 H&R Magnum.
All dimensional and pressure figures on this page come from C.I.P.’s published standard and are recorded as verified. Three bullet weights are recorded from a handloading data page cited by Wikipedia’s infobox, but that page’s published velocities are maximum-handload results tied to a specific powder charge rather than factory-ammunition figures, so no velocity or energy is recorded for this cartridge. No photograph of a revolver chambered for it appears on this site.
References
- .32 S&W Long · 1371894599 · read 2026-09-24
- C.I.P. TDCC datasheet — 32 S&W Long · 2009-05-05 · read 2026-09-24
Last verified 2026-09-24 · review status: agent-populated
