.222 Remington
Introduced 1950RemingtonCIP standard
Dimensions and pressure
Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.
Identity
- Designed by
- Remington
- Introduced
- 1950
- Production
- not recorded
- Standards body
- C.I.P.
- Case type
- Rimless
- Case shape
- Bottleneck
Dimensions
- Bullet diameter
- 5.7 mm0.2244 insource
Dimension G1.
- Bore diameter
- not recorded
- Case length
- 43.18 mm1.700 insource
Cartridge maximum, dimension L3.
- Overall length
- 54.1 mm2.130 insource
Dimension L6.
- Rim diameter
- 9.6 mm0.3780 insource
Dimension R1.
- Neck diameter
- 6.43 mm0.2531 insource
Dimension H2.
- Base diameter
- 9.58 mm0.3772 insource
Dimension P1.
Pressure
- Maximum pressure
- 370 MPa53,664 psisource
Pmax 3700 bar, C.I.P. method.
- Pressure standard
- C.I.P.
SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.
Loads
Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.
40 gr HP
- Bullet mass
- 2.59 g39.97 grestimated
40 gr bullet, from a handloading data page (Hodgdon), via the Wikipedia infobox. The published velocity on that page is a maximum-handload result tied to a specific powder charge, not a factory-ammunition figure, so it is not recorded.
- Cartridge mass
- not recorded
- Bullet type
- HP
- G1 BC
- not recorded
- G7 BC
- not recorded
50 gr SP
- Bullet mass
- 3.24 g50.00 grestimated
50 gr bullet, from the same handloading data page, via the Wikipedia infobox. Velocity not recorded for the same reason.
- Cartridge mass
- not recorded
- Bullet type
- SP
- G1 BC
- not recorded
- G7 BC
- not recorded
55 gr SP
- Bullet mass
- 3.56 g54.94 grestimated
55 gr bullet, from the same handloading data page, via the Wikipedia infobox. Velocity not recorded for the same reason.
- Cartridge mass
- not recorded
- Bullet type
- SP
- G1 BC
- not recorded
- G7 BC
- not recorded
60 gr V-Max
- Bullet mass
- 3.89 g60.03 grestimated
60 gr bullet, from the same handloading data page, via the Wikipedia infobox. Velocity not recorded for the same reason.
- Cartridge mass
- not recorded
- Bullet type
- V-Max
- G1 BC
- not recorded
- G7 BC
- not recorded
Chambered in
Computed from every entry that lists this cartridge. Nothing here is hand-maintained.
No entry on the site is chambered in it yet.
Gallery
Image credit
- Title

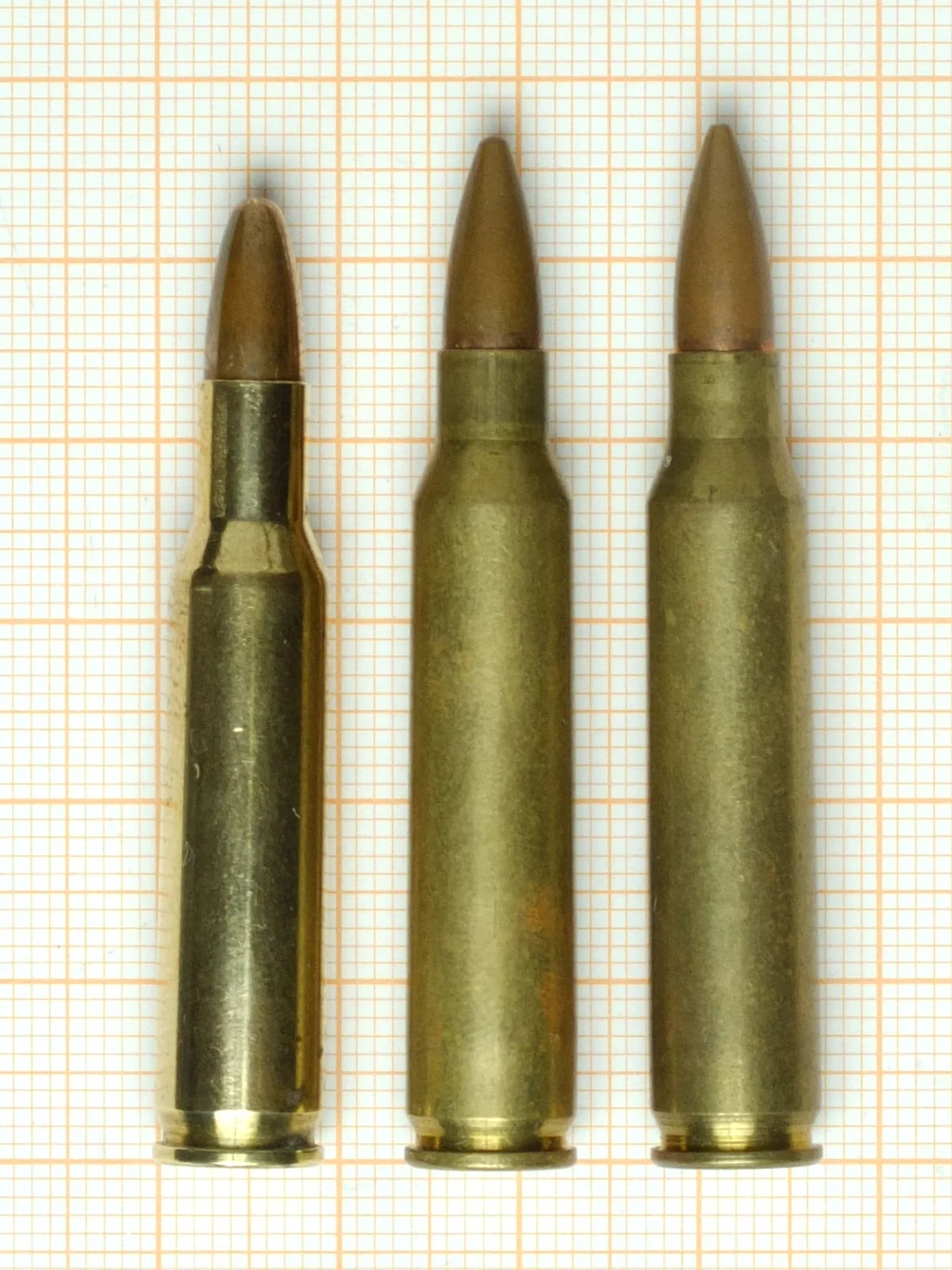

- File:Cartridges .222 Remington, .223 Remington & 5.56x45mm NATO.jpg
- Author
- Grasyl(attribution required)
- Licence
- CC BY-SA 4.0
- Source
- https://commons.wikimedia.org/wiki/File:Cartridges_.222_Remington,_.223_Remington_&_5.56x45mm_NATO.jpg
Detail
The .222 Remington is a rimless, bottlenecked rifle cartridge Remington introduced in 1950 as the first commercial rimless .22-caliber cartridge made in the United States. Its accuracy and flat trajectory led to its adoption for varmint and benchrest rifles.
In 1963 a stretched version of the .222 case, the .222 Remington Special, was standardised alongside the new M16 rifle as the .223 Remington and 5.56×45mm NATO; the .223 Remington and 5.56×45mm NATO entries on this site have the fuller account of that later, larger-scale military development. The original .222 Remington itself was never adopted as a military round and has remained a civilian sporting cartridge throughout its production life.
All dimensional and pressure figures on this page come from C.I.P.’s published standard and are recorded as verified. Four bullet weights are recorded from a handloading data page cited by Wikipedia’s infobox, but that page’s published velocities are maximum-handload results tied to a specific powder charge rather than factory-ammunition figures, so no velocity or energy is recorded for this cartridge. No photograph of a rifle chambered for it appears on this site.
References
- .222 Remington · 1374344058 · read 2026-09-24
- C.I.P. TDCC datasheet — 222 Rem. · 2008-09-13 · read 2026-09-24
Last verified 2026-09-24 · review status: agent-populated
