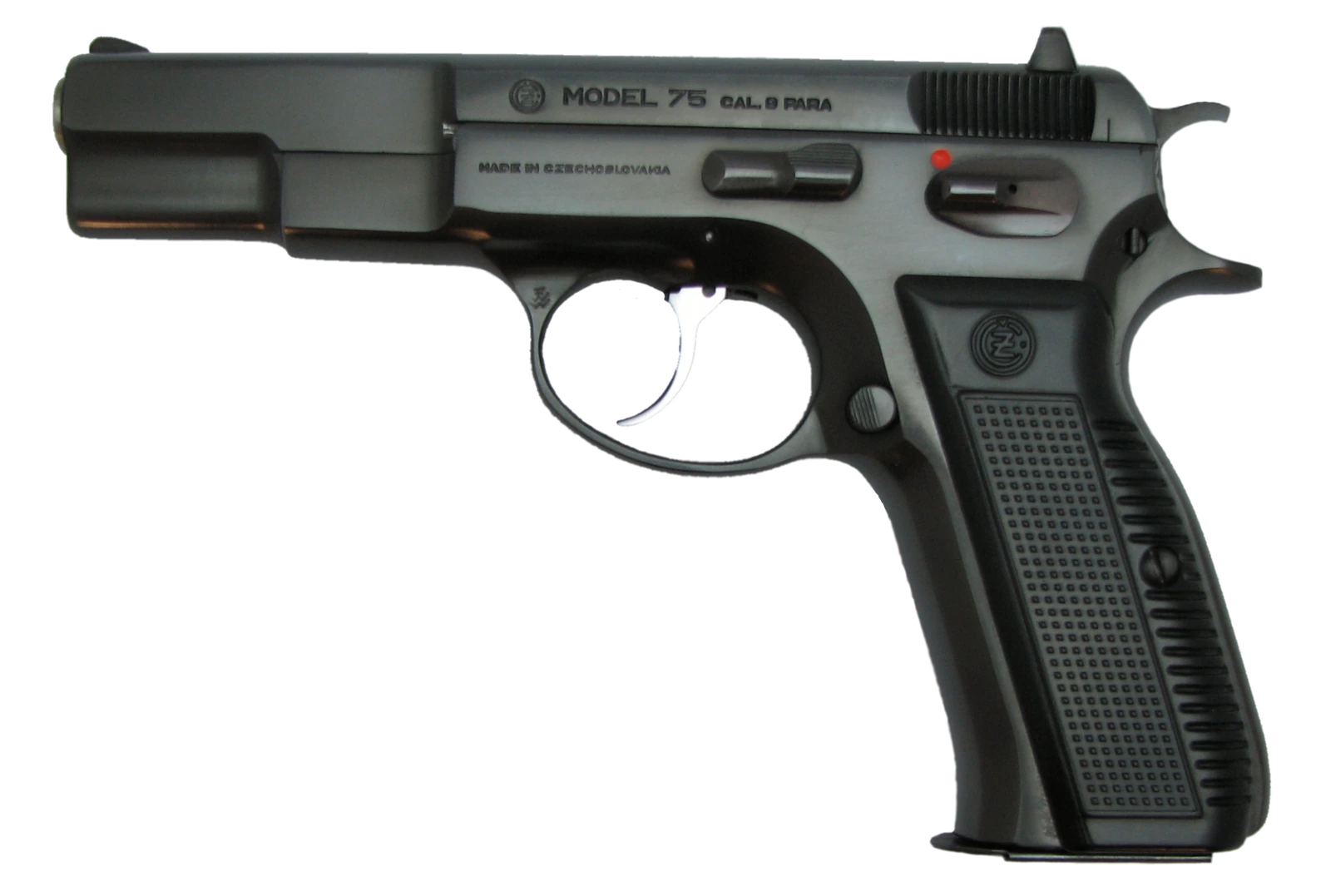

Image credit
- Title
- File:1977 CZ-75.png
- Author
- Vidiot savant(attribution required)
- Licence
- CC BY-SA 3.0
- Source
- https://commons.wikimedia.org/wiki/File:1977_CZ-75.png
How Muzzle energy is calculated
E = ½ · m · v²
Inputs
- m7.452 g115.0 grverifiedsource115 gr as published, converted to grams.
- v359.7 m/s1,180 fpsverifiedMeasured with a 101.6 mm barrel, not this arm's 120 mm. Velocity outside the sourced range is not projected.
1 of 2 inputs link to their source.
How Muzzle velocity is calculated
nearest sourced barrel length — no extrapolation (SPEC.md §8.2)
Inputs
- v at 101.6 mm359.7 m/s1,180 fpsverifiedsource1180 fps as published.
Assumptions
- This figure belongs to a 101.6 mm barrel. It is shown because it is the closest measurement that exists, not because it applies here.
1 of 1 inputs link to their source.
How Loaded mass is calculated
m_loaded = m_empty + m_magazine + n · m_cartridge
Not calculated: m_magazine has no sourced figure yet. Nothing is substituted for a missing input.
Assumptions
- One magazine, filled to the stated capacity. Spare magazines, optics, slings and lights are the owner’s, not the arm’s.
2 of 4 inputs link to their source.
How Free recoil is calculated
E_recoil = ½ · m_firearm · v_recoil²
Inputs
- m_firearm1.12 kg2.469 lbverifiedsource
- v_recoil2.393 m/s7.852 fpsestimated
Assumptions
- Propellant gas momentum is excluded: ARMAG does not record charge weights (SPEC.md §14). This is therefore a lower bound on the real free recoil, consistent between entries but smaller than a figure that includes the gas term.
- Free recoil: the arm is unrestrained. Stock design, muzzle devices, stance and shooter mass are not modelled, because none of them is a property of the arm.
1 of 2 inputs link to their source.
How Capacity is calculated
as published for the primary chambering
Inputs
- capacity16verifiedsourceThe article gives 10–26 rounds depending on version and calibre; 16 is the standard full-size magazine.
1 of 1 inputs link to their source.
Derived figures
Computed from the sourced values above. Open ƒ on any figure for the formula, its inputs, and the assumptions it makes.
How Momentum is calculated
p = m · v
Inputs
- m7.452 g115.0 grverifiedsource115 gr as published, converted to grams.
- v359.7 m/s1,180 fpsverifiedMeasured with a 101.6 mm barrel, not this arm's 120 mm. Velocity outside the sourced range is not projected.
1 of 2 inputs link to their source.
How Sectional density is calculated
SD = mass(gr) / (7000 · diameter(in)²)
Inputs
- mass7.452 g115.0 grverifiedsource115 gr as published, converted to grams.
- diameter9.03 mm0.3555 inverifiedsourceCartridge maximum, dimension G1.
Assumptions
- Reported in the conventional lb/in² so it is directly comparable with published figures.
2 of 2 inputs link to their source.
How Power factor is calculated
PF = mass(gr) · velocity(fps) / 1000
Inputs
- mass7.452 g115.0 grverifiedsource115 gr as published, converted to grams.
- velocity359.7 m/s1,180 fpsverifiedMeasured with a 101.6 mm barrel, not this arm's 120 mm. Velocity outside the sourced range is not projected.
Assumptions
- A competition classification defined by the IPSC and USPSA rulebooks, stated in their units. It describes a scoring category, not an effect.
1 of 2 inputs link to their source.
How Magazine dump is calculated
t = (n − 1) / (rpm / 60)
Not calculated: rpm has no sourced figure yet. Nothing is substituted for a missing input.
Assumptions
- Cyclic rate held for the whole magazine, no stoppages, trigger held down. A theoretical figure for comparing mechanisms, not a measured one.
1 of 2 inputs link to their source.
How Sight error at 1 mm is calculated
θ = atan(misalignment / sight radius)
Not calculated: sight radius has no sourced figure yet. Nothing is substituted for a missing input.
Assumptions
- Shows what a stated aiming error costs. The misalignment is the reader’s figure; the site does not claim how well anyone aims.
No input on this calculation carries a clickable source yet.
Specifications
Every row here is generated from the schema, so a figure recorded on this entry cannot be missing from the table — and the same rows, read the same way, are what the comparison shows.
Identity
- Type
- Pistol
- Action
- Self-loading
- Fire modes
- Semi-automatic
- Operating system
- Short recoil
- Designed in
- Czechoslovakia
- Produced in
- Introduced
- 1976
- Production
- 1976–present
Dimensions and mass
Sights and rifling
- Sight radius
- not recorded
- Sight height over bore
- not recorded
- Rifling twist
- not recorded
- Twist direction
- not recorded
- Grooves
- not recorded
- Sight graduation
- not recorded
Chamberings
- 9x19mm Parabellumprimary16 rounds
Scale
A to-scale outline against family siblings. The dimensions are sourced; the shape is a representative outline for the type, and says so.
- CZ 75206.3 mm8.122 in
Representative outline — the dimensions are sourced, the shape is not. Overall length, and barrel length where recorded, are drawn from this entry's own figures; the profile is a generic one for the firearm type and says nothing about this arm's actual contours.
Detail
The Koucký brothers designed it in a country that could not export it. Czechoslovakia was inside the Warsaw Pact, the pistol was chambered for a NATO cartridge specifically so it could be sold for hard currency, and the patent was never filed in the West — so when it did reach Western shooters in the 1980s it was copied immediately and extensively.
Its distinguishing feature is the slide rails, which run inside the frame rather than outside it. The slide therefore sits low in the hand and has a lot of bearing surface, which makes the pistol both flatter-shooting and, in the hands of the competitive shooters who adopted it, very accurate. The full-length internal rails are why almost every subsequent high-capacity service pistol from Italy, Turkey, Switzerland and Israel looks faintly like this one.
The first-generation “short rail” guns of 1975–1977 are the collectable ones and are mechanically identical.
The article publishes a 1,000 rpm rate of fire for the selective-fire CZ 75 Automatic, which is a different weapon; no cyclic rate is recorded here.
References
This entry's own bibliography. Every citation key on this page resolves into this list.
- CZ 75 · Wikipedia · 1369040393 · read 2026-08-31 · CC BY-SA 4.0
Last verified 2026-08-31 · review status: agent-populated
