9×21mm

Introduced 1980Franco Benvenuti Agency (Italy) and Israel Military Industries (IMI)CIP standard

Also known as 9x21mm IMI — the same cartridge under different names, all of which find this page.

Dimensions and pressure

Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.

Identity
Designed by
Franco Benvenuti Agency (Italy) and Israel Military Industries (IMI)
Introduced
1980
Production
not recorded
Standards body
C.I.P.
Case type
Rimless
Case shape
Tapered

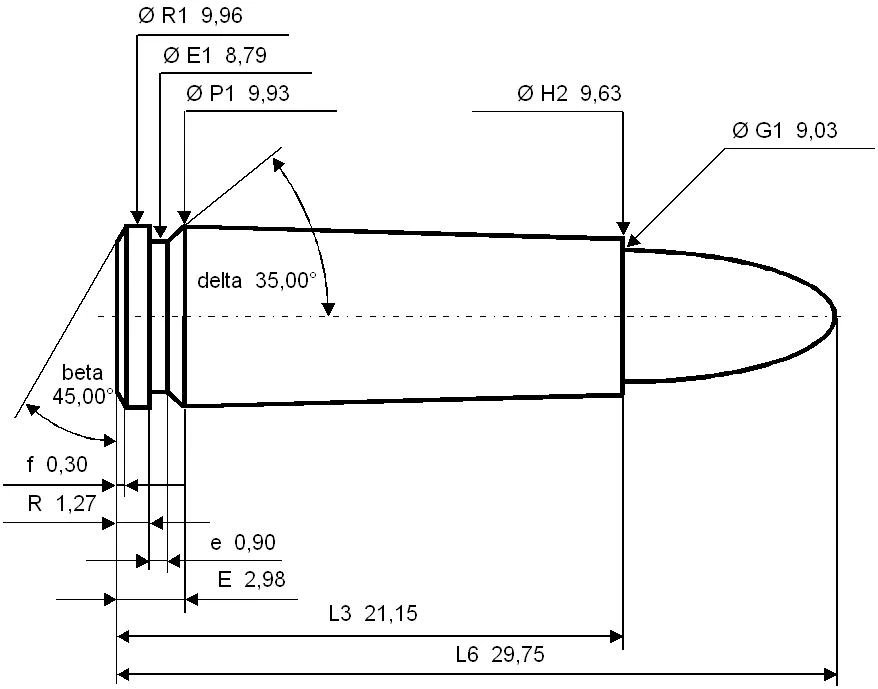

Dimensions
Bullet diameter
9.03 mm0.3555 insource

Cartridge maximum, dimension G1.

Bore diameter
not recorded
Case length
21.15 mm0.8327 insource

Cartridge maximum, dimension L3.

Overall length
29.75 mm1.171 insource

Cartridge maximum, dimension L6.

Rim diameter
9.96 mm0.3921 insource

Dimension R1.

Neck diameter
9.63 mm0.3791 insource

Dimension H2.

Base diameter
9.93 mm0.3909 insource

Dimension P1.

Pressure
Maximum pressure
235 MPa34,084 psisource

Pmax 2350 bar.

Pressure standard
C.I.P.

SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.

Loads

Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.

7.45 g FMJ

Bullet mass
7.45 g115.0 grsource

As published in the article's ballistics table, sourced there to C.I.P. No test barrel length is stated, so no velocity is recorded for this load.

Cartridge mass
not recorded
Bullet type
FMJ
G1 BC
not recorded
G7 BC
not recorded

8.00 g FMJ

Bullet mass
8 g123.5 grsource

As published in the article's ballistics table, sourced there to C.I.P. No test barrel length is stated, so no velocity is recorded for this load.

Cartridge mass
not recorded
Bullet type
FMJ
G1 BC
not recorded
G7 BC
not recorded

Chambered in

Computed from every entry that lists this cartridge. Nothing here is hand-maintained.

Detail

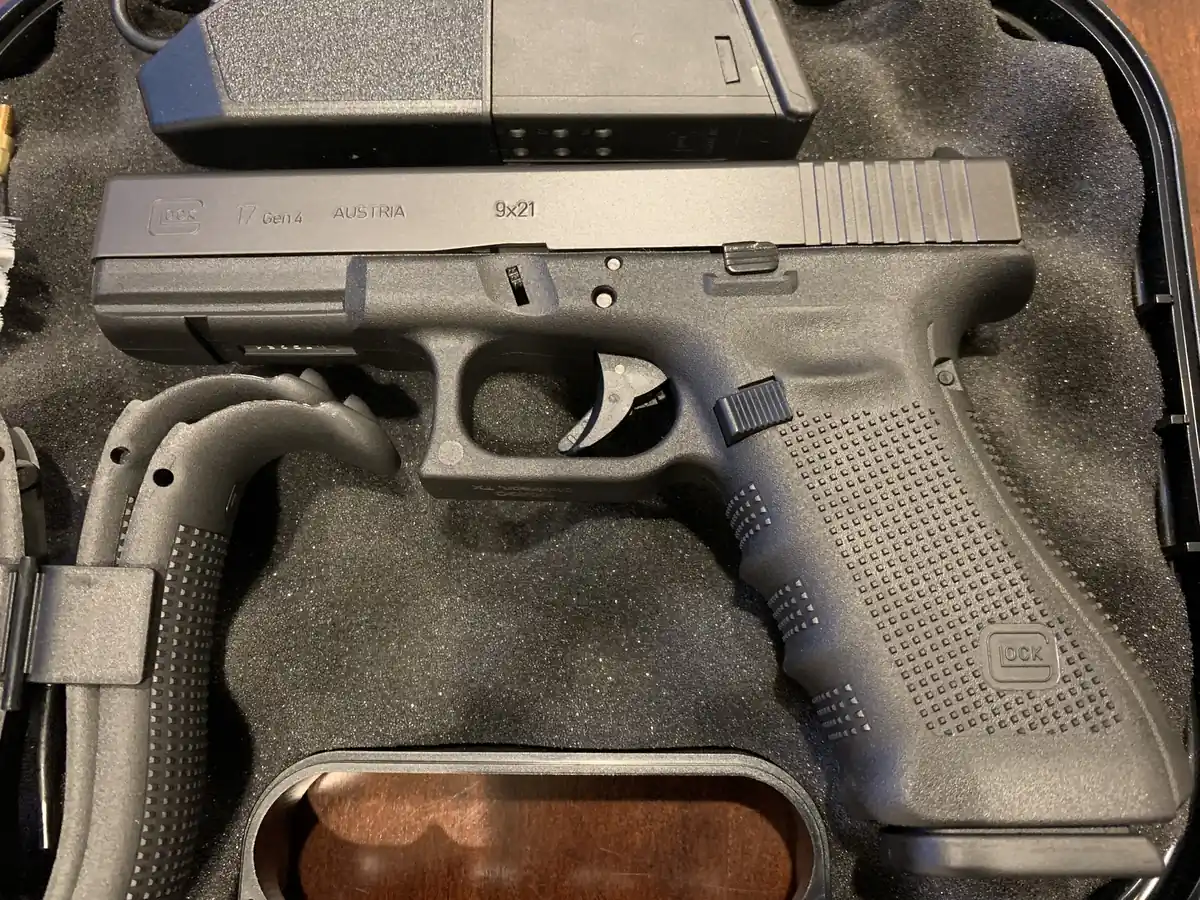

The 9×21mm was designed in Italy and commercialised from 1980 by Israel Military Industries as a commercial-market counterpart to 9×19mm Parabellum: the same bullet at near-identical performance, in a longer case. It exists because several national markets of the period drew a line between service-calibre ammunition and commercial ammunition; ARMAG records no jurisdiction data, and that distinction is named here only because it is the reason the cartridge was designed at all. IMI’s first commercial success with it was the Uzi Defender, a Micro Uzi rechambered for 9×21 IMI and imported into Italy, where the round went on to dominate the commercial pistol market.

The case is a 9×19mm Parabellum case lengthened from 19.05 mm to 21.15 mm, with the bullet seated slightly deeper so that the loaded round’s overall length, 29.75 mm against the 9×19mm’s 29.69 mm, is almost unchanged — close enough that a pistol built for one chambering can often be adapted to the other with a barrel change. Being rimless, it also found a second life in USPSA/IPSC practical shooting’s open class, where a rimless case resists the rim-lock jams that semi-rimmed rounds such as .38 Super can cause in a double-column magazine.

Two loads are recorded here by bullet mass, both drawn from the article’s own C.I.P.-sourced ballistics table.

Gaps on this page: no test barrel length is stated for either load, so no muzzle velocity is recorded — mass only. No ballistic coefficient is published for either load. Neither DVIDS nor Smithsonian Open Access returned a result for this cartridge, consistent with its history as a civilian round outside US military use.

References

  1. 9×21mm · 1327723604 · read 2026-09-01
  2. C.I.P. TDCC datasheet — 9 x 21 · 2000-06-07 · read 2026-09-01

Last verified 2026-09-01 · review status: agent-populated
