.455 Webley

Royal Small Arms Factory, EnfieldCIP standard

Also known as .455 Webley Mk II, 455 MK II — the same cartridge under different names, all of which find this page.

Dimensions and pressure

Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.

Identity
Designed by
Royal Small Arms Factory, Enfield
Introduced
not recorded
Production
not recorded
Standards body
C.I.P.
Case type
Rimmed
Case shape
Straight
Dimensions
Bullet diameter
11.57 mm0.4555 insource

C.I.P. G1, maximum bullet diameter.

Bore diameter
not recorded
Case length
19.5 mm0.7677 insource

C.I.P. L3, maximum case length. This is the shorter Mk II case (19.5 mm / .77 in) that C.I.P. standardises; the original Mk I case was longer, at a published .886 in, and is not covered by any free standard.

Overall length
32 mm1.260 insource

C.I.P. L6, maximum cartridge overall length.

Rim diameter
13.5 mm0.5315 insource

C.I.P. R1.

Neck diameter
12.14 mm0.4780 insource

C.I.P. H2.

Base diameter
12.15 mm0.4783 insource

C.I.P. P1.

Pressure
Maximum pressure
90 MPa13,053 psisource

C.I.P. Pmax 900 bar; 1 bar = 0.1 MPa exactly.

Pressure standard
C.I.P.

SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.

Loads

Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.

Mk II full metal jacket ball

Royal Laboratory Woolwich Arsenal

Bullet mass
17.17 g265.0 grestimatedsource

Cited article's ballistics table publishes 265 grains; converted here. No test barrel length is stated anywhere in the article for any load, so no velocity is recorded.

Cartridge mass
not recorded
Bullet type
FMJ
G1 BC
not recorded
G7 BC
not recorded

Chambered in

Computed from every entry that lists this cartridge. Nothing here is hand-maintained.

No entry on the site is chambered in it yet.

Detail

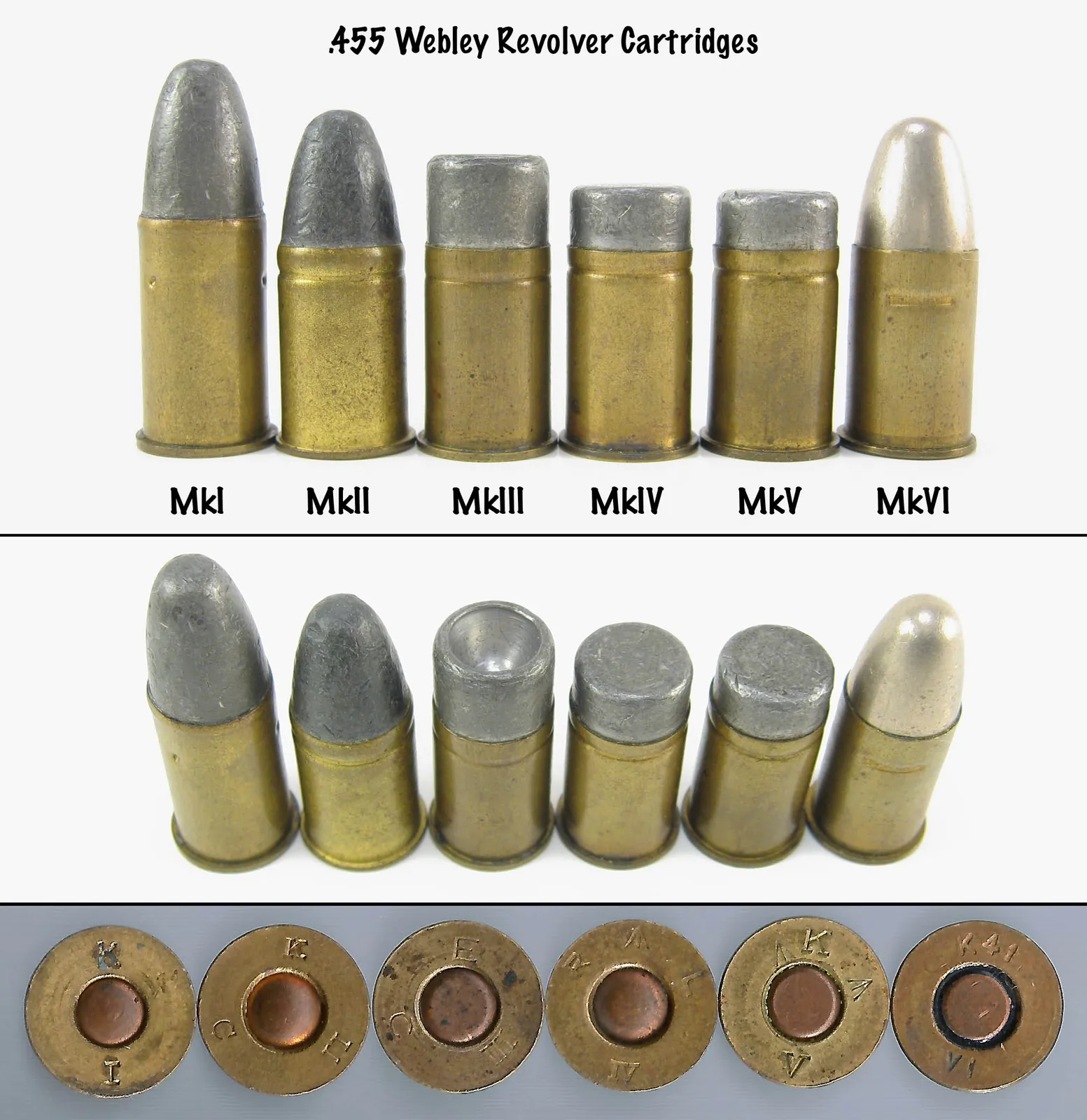

The .455 Webley is a rimmed, straight-walled revolver cartridge that armed the British and Commonwealth military service revolvers — most notably the Webley Mk VI and the Enfield No. 2 — from the 1890s through the Second World War. It saw six official marks over that service life, each changing the case length, bullet profile or propellant charge while keeping a common bullet diameter and rim, so that later ammunition would still chamber and fire in earlier revolvers.

The Mk I, adopted in the 1890s, used a longer case loaded with black powder and a heavy round-nose bullet. The Mk II, introduced after cordite propellant let the case shorten considerably, became the standard load for the rest of the cartridge’s service life and is the version this entry’s dimensions describe — later marks (III through VI) changed bullet shape, including a wartime hollow-point Mk III abandoned under the 1899 Hague Declaration and a flat-tip Mk IV and V, without changing the Mk II case that most of them share.

This entry carries the full C.I.P. dimensional standard for the Mk II, the only mark with a free published standard, and one ball load’s bullet mass, converted from a published 265 grains and recorded as estimated. No source states a test barrel length for any published velocity figure, British service or modern commercial, so no velocity is recorded and the cartridge computes no muzzle energy or trajectory.

References

  1. .455 Webley · 1368405372 · read 2026-09-01
  2. C.I.P. TDCC datasheet — 455 MK II · 1984-06-14 · read 2026-09-01
