.300 Winchester Short Magnum
Introduced 2001WinchesterCIP standard
Also known as 300 WSM — the same cartridge under different names, all of which find this page.
Dimensions and pressure
Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.
Identity
- Designed by
- Winchester
- Introduced
- 2001
- Production
- not recorded
- Standards body
- C.I.P.
- Case type
- Rebated rim
- Case shape
- Bottleneck
Dimensions
- Bullet diameter
- 7.85 mm0.3091 insource
C.I.P. G1, maximum bullet diameter.
- Bore diameter
- not recorded
- Case length
- 53.34 mm2.100 insource
C.I.P. L3, maximum case length.
- Overall length
- 72.64 mm2.860 insource
C.I.P. L6, maximum cartridge overall length.
- Rim diameter
- 13.59 mm0.5350 insource
C.I.P. R1.
- Neck diameter
- 8.74 mm0.3441 insource
C.I.P. H2.
- Base diameter
- 14.12 mm0.5559 insource
C.I.P. P1. The base is wider than the rim, the rebated-rim design this cartridge shares with the rest of the WSM family.
Pressure
- Maximum pressure
- 440 MPa63,817 psisource
C.I.P. Pmax 4400 bar; 1 bar = 0.1 MPa exactly.
- Pressure standard
- C.I.P.
SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.
Loads
Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.
Hornady Precision Hunter 200 gr ELD-X
Hornady
- Bullet mass
- 12.96 g200.0 grsource
Published as 200 grains.
- Cartridge mass
- not recorded
- Bullet type
- ELD-X
- G1 BC
- not recorded
- G7 BC
- not recorded
| Barrel | Velocity |
|---|---|
| 609.6 mm24.00 in | 859.5 m/s2,820 fps |
Chambered in
Computed from every entry that lists this cartridge. Nothing here is hand-maintained.
No entry on the site is chambered in it yet.

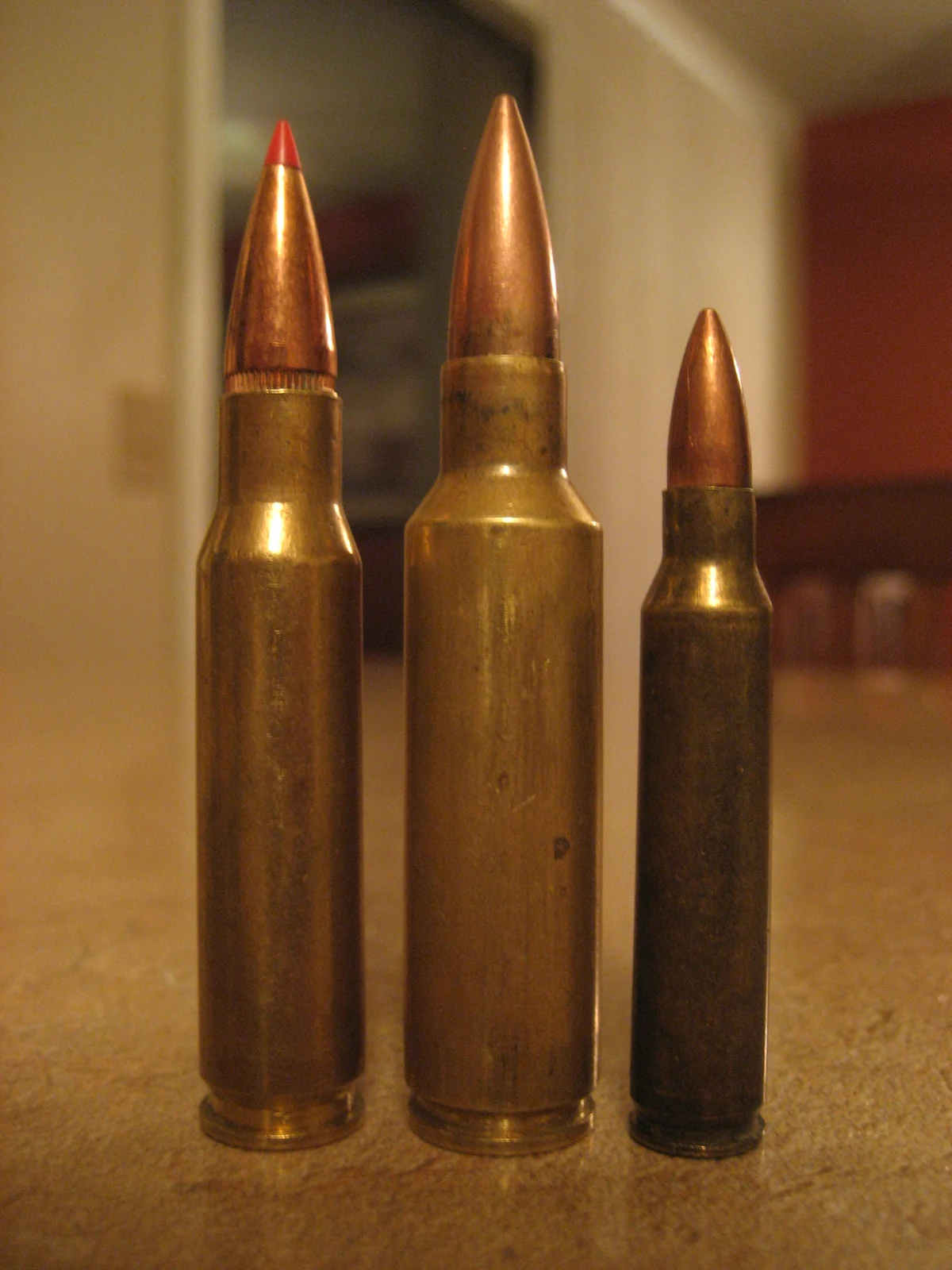

Gallery
Image credit
- Title
- File:.300 WSM.JPG
- Author
- Derek280
- Licence
- Public domain
- Source
- https://commons.wikimedia.org/wiki/File:.300_WSM.JPG
Detail
The .300 Winchester Short Magnum is a rebated-rim, bottlenecked rifle cartridge Winchester introduced in 2001, built to deliver .300 Winchester Magnum-class performance from a case short enough to feed through a standard-length rifle action rather than the long magnum action the older cartridge needs. Its case is unbelted and its rim narrower than its body — the rebated-rim design shared across the whole WSM family — which lets a fat, short case headspace and feed through a bolt face sized for a standard .30-06-length cartridge.
At 53.34 mm case length against the .300 Winchester Magnum’s 66 mm, the WSM trades a longer powder column for a wider one, aiming to reach comparable velocities with less overall cartridge length and, Winchester argued, better powder-burn efficiency. Its 440 MPa C.I.P. pressure ceiling is high for a commercial hunting round, reflecting the shorter case’s smaller powder charge working at higher pressure to reach magnum velocities.
This entry carries the full C.I.P. dimensional standard and one factory load, Hornady’s Precision Hunter 200-grain ELD-X rated at 859.5 m/s from a stated 24-inch test barrel. No ballistic coefficient is published on that product page, so the cartridge computes a muzzle energy figure but no trajectory. No twist rate specific to a commercial .300 WSM barrel is recorded here, only the general 1-in-10-inch figure that recurs across sporting-rifle listings for the cartridge.
