8×50mmR Mannlicher
Introduced 1890CIP standard
Also known as M. 90: the same cartridge under different names, all of which find this page.
Dimensions and pressure
Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.
Identity
- Designed by
- not recorded
- Introduced
- 1890
- Production
- not recorded
- Standards body
- C.I.P.
- Case type
- Rimmed
- Case shape
- Bottleneck
Dimensions
- Bullet diameter
- 8.22 mm0.3236 insource
Dimension G1.
- Bore diameter
- not recorded
- Case length
- 50.2 mm1.976 insource
Cartridge maximum, dimension L3.
- Overall length
- 76 mm2.992 insource
Dimension L6.
- Rim diameter
- 14.2 mm0.5591 insource
Dimension R1.
- Neck diameter
- 8.9 mm0.3504 insource
Dimension H2.
- Base diameter
- 12.6 mm0.4961 insource
Dimension P1.
Pressure
- Maximum pressure
- 355 MPa51,488 psisource
Pmax 3550 bar, C.I.P. method.
- Pressure standard
- C.I.P.
SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.
Loads
Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.
244 gr M90 RN
- Bullet mass
- 15.81 g244.0 grestimated
244 gr M90 ball load, Wikipedia infobox; the infobox carries no further citation for this figure.
- Cartridge mass
- not recorded
- Bullet type
- RN
- G1 BC
- not recorded
- G7 BC
- not recorded
| Barrel | Velocity |
|---|---|
| 762 mm30.00 in | 594 m/s1,949 fps |
244 gr M93 RN
- Bullet mass
- 15.81 g244.0 grestimated
244 gr M93 ball load, Wikipedia infobox; the infobox carries no further citation for this figure.
- Cartridge mass
- not recorded
- Bullet type
- RN
- G1 BC
- not recorded
- G7 BC
- not recorded
| Barrel | Velocity |
|---|---|
| 762 mm30.00 in | 620 m/s2,034 fps |
Chambered in
Computed from every entry that lists this cartridge. Nothing here is hand-maintained.
No entry on the site is chambered in it yet.
Gallery
Image credit
- Title
- File:Mannlicher en-bloc clip.jpg
- Author
- SEBAS
- Licence
- Public domain
- Source
- https://commons.wikimedia.org/wiki/File:Mannlicher_en-bloc_clip.jpg
Detail

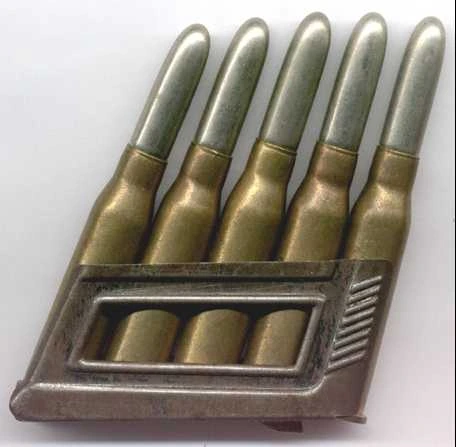

The 8×50mmR Mannlicher, adopted by Austria-Hungary in 1890 as the M. 90, is a rimmed, bottlenecked rifle cartridge converted from the earlier 8×52mmR Mannlicher round. It armed the Austro-Hungarian Mannlicher M1895 straight-pull rifle and carbine, fed from Mannlicher-pattern en-bloc clips that loaded five rounds into the rifle’s magazine at once and ejected automatically once empty.
The cartridge remained Austria-Hungary’s standard rifle round through the First World War, and surplus rifles and ammunition in the calibre saw further service with Bulgaria and Italy, including use by Italy in the Second World War. It was later replaced by the 8×56mmR, for which many of the rifles were rechambered.
Case and pressure dimensions here come from C.I.P.’s published standard and are recorded as verified. Two historical ball loads are recorded from Wikipedia’s infobox, which carries no further citation for either bullet mass or velocity figure; both are therefore recorded as estimated rather than verified. No photograph of an M1895 rifle chambered for this round appears on this site.
References
- 8×50mmR Mannlicher · 1373296698 · read 2026-09-24
- C.I.P. TDCC datasheet — 8 x 50 R · 2002-05-15 · read 2026-09-24
