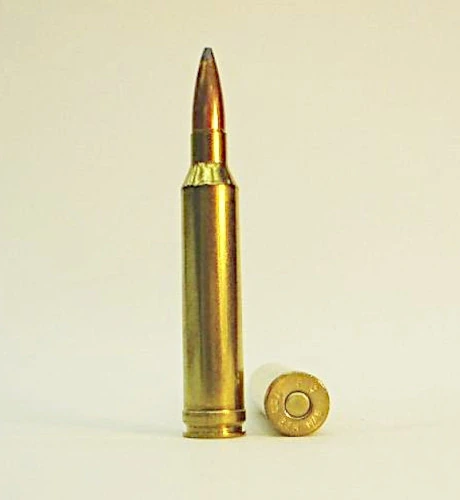

7mm Remington Magnum
Introduced 1962Remington Arms CompanyCIP standard
Dimensions and pressure
Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.
Identity
- Designed by
- Remington Arms Company
- Introduced
- 1962
- Production
- not recorded
- Standards body
- C.I.P.
- Case type
- Rimless
- Case shape
- Bottleneck
Dimensions
- Bullet diameter
- 7.23 mm0.2846 insource
Cartridge maximum, dimension G1.
- Bore diameter
- not recorded
- Case length
- 63.5 mm2.500 insource
Dimension L3.
- Overall length
- 83.57 mm3.290 insource
Dimension L6.
- Rim diameter
- 13.51 mm0.5319 insource
Dimension R1.
- Neck diameter
- 8 mm0.3150 insource
Dimension H2.
- Base diameter
- 13.03 mm0.5130 insource
Dimension P1.
Pressure
- Maximum pressure
- 430 MPa62,366 psisource
Pmax 4300 bar, C.I.P. method. SAAMI rates the same chambering at 61,000 psi by its own separate method.
- Pressure standard
- C.I.P.
SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.
Loads
Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.
162 gr ELD-X Precision Hunter
Hornady
- Bullet mass
- 10.5 g162.0 grsource
162 gr as published on the manufacturer's own current product page.
- Cartridge mass
- not recorded
- Bullet type
- ELD-X
- G1 BC
- not recorded
- G7 BC
- not recorded
| Barrel | Velocity |
|---|---|
| 610 mm24.02 in | 906.8 m/s2,975 fps |
110 gr Barnes TTS
- Bullet mass
- 7.13 g110.0 grestimated
From Accurate Powder's reloading-data sheet, cited on Wikipedia. A handloading bullet weight, not a factory-ammunition figure; no velocity is recorded from this source.
- Cartridge mass
- not recorded
- Bullet type
- Barnes TTS
- G1 BC
- not recorded
- G7 BC
- not recorded
175 gr SP
- Bullet mass
- 11.34 g175.0 grestimated
From Accurate Powder's reloading-data sheet, cited on Wikipedia. A handloading bullet weight, not a factory-ammunition figure; no velocity is recorded from this source.
- Cartridge mass
- not recorded
- Bullet type
- Soft Point
- G1 BC
- not recorded
- G7 BC
- not recorded
Chambered in
Computed from every entry that lists this cartridge. Nothing here is hand-maintained.
No entry on the site is chambered in it yet.
Gallery

Image credit
- Title
- File:7mm Remington Magnum.JPG
- Author
- own work
- Licence
- Public domain
- Source
- https://commons.wikimedia.org/wiki/File:7mm_Remington_Magnum.JPG

Image credit
- Title
- File:7mm STW.jpg
- Author
- Hellbus(attribution required)
- Licence
- CC BY-SA 4.0
- Source
- https://commons.wikimedia.org/wiki/File:7mm_STW.jpg
Detail
The 7mm Remington Magnum reached the market in 1962, credited largely to hunting editor and outfitter Les Bowman, who wanted a round with less recoil than the .300 Weatherby Magnum for clients hunting elk-sized game at long range, while offering more retained energy at distance than the .270 Winchester managed with the bullets available at the time. Bowman had used the .275 Holland & Holland Magnum abroad and found it a good compromise, but it was never sold in the United States, so Remington built a belted magnum case along similar lines for the American market instead.
Its arrival reshaped that market almost immediately: the existing .264 Winchester Magnum lost most of its following within a year of the 7mm Remington Magnum’s introduction, and Winchester answered in 1963 with the .300 Winchester Magnum rather than trying to compete directly in 7mm. The two rival magnums that emerged from that exchange, one from each company, have remained the most widely used magnum hunting cartridges in North America ever since.
All dimensional and pressure figures on this page come from C.I.P.’s own published standard and are recorded as verified; SAAMI, the body that governs it as an American commercial round, rates its pressure ceiling somewhat lower under a different test method. Bullet mass and velocity for Hornady’s 162-grain ELD-X Precision Hunter load come from the manufacturer’s own current product page and are likewise verified. Two further bullet weights appear only in a handloading reference (Accurate Powder), whose velocity figures reflect a specific propellant charge rather than the cartridge itself and are not recorded here; only their bullet masses are.
References
- 7mm Remington Magnum · 1318754751 · read 2026-09-24
- C.I.P. TDCC datasheet — 7 mm Rem. Mag. · 2002-05-15 · read 2026-09-24
- 7mm Rem Mag 162 gr ELD-X Precision Hunter · read 2026-09-24
Last verified 2026-09-24 · review status: agent-populated
