7.92x57mm Mauser
Introduced 1905German Rifle Test CommissionCIP standard
Also known as 8mm Mauser, 8 x 57 IS, 7.9mm — the same cartridge under different names, all of which find this page.
Dimensions and pressure
Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.
Identity
- Designed by
- German Rifle Test Commission
- Introduced
- 1905
- Production
- not recorded
- Standards body
- C.I.P.
- Case type
- Rimless
- Case shape
- Bottleneck
Dimensions
- Bullet diameter
- 8.22 mm0.3236 insource
Cartridge maximum, dimension G1.
- Bore diameter
- not recorded
- Case length
- 57 mm2.244 insource
Cartridge maximum, dimension L3.
- Overall length
- 82 mm3.228 insource
Cartridge maximum, dimension L6.
- Rim diameter
- 11.95 mm0.4705 insource
Dimension R1.
- Neck diameter
- 9.08 mm0.3575 insource
Dimension H2.
- Base diameter
- 11.94 mm0.4701 insource
Dimension P1.
Pressure
- Maximum pressure
- 390 MPa56,565 psisource
Pmax 3900 bar, transducer method.
- Pressure standard
- C.I.P.
SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.
Loads
Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.
S Patrone, 1903 pattern ball
German Empire
- Bullet mass
- 9.9 g152.8 grsource
Stated with the muzzle velocity in the cited article: 9.9 g (154 gr) ball.
- Cartridge mass
- not recorded
- Bullet type
- Pointed FMJ
- G1 BC
- not recorded
- G7 BC
- not recorded
| Barrel | Velocity |
|---|---|
| 740 mm29.13 in | 878 m/s2,881 fps |
RWS DK 11.7 g
RWS
- Bullet mass
- 11.7 g180.6 grsource
Ballistics table of the cited article.
- Cartridge mass
- not recorded
- Bullet type
- Bonded soft point
- G1 BC
- not recorded
- G7 BC
- not recorded
| Barrel | Velocity |
|---|---|
| 600 mm23.62 in | 820 m/s2,690 fps |
Chambered in
Computed from every entry that lists this cartridge. Nothing here is hand-maintained.
- Karabiner 98k
Mauser
- Mauser Gewehr 98
Mauser

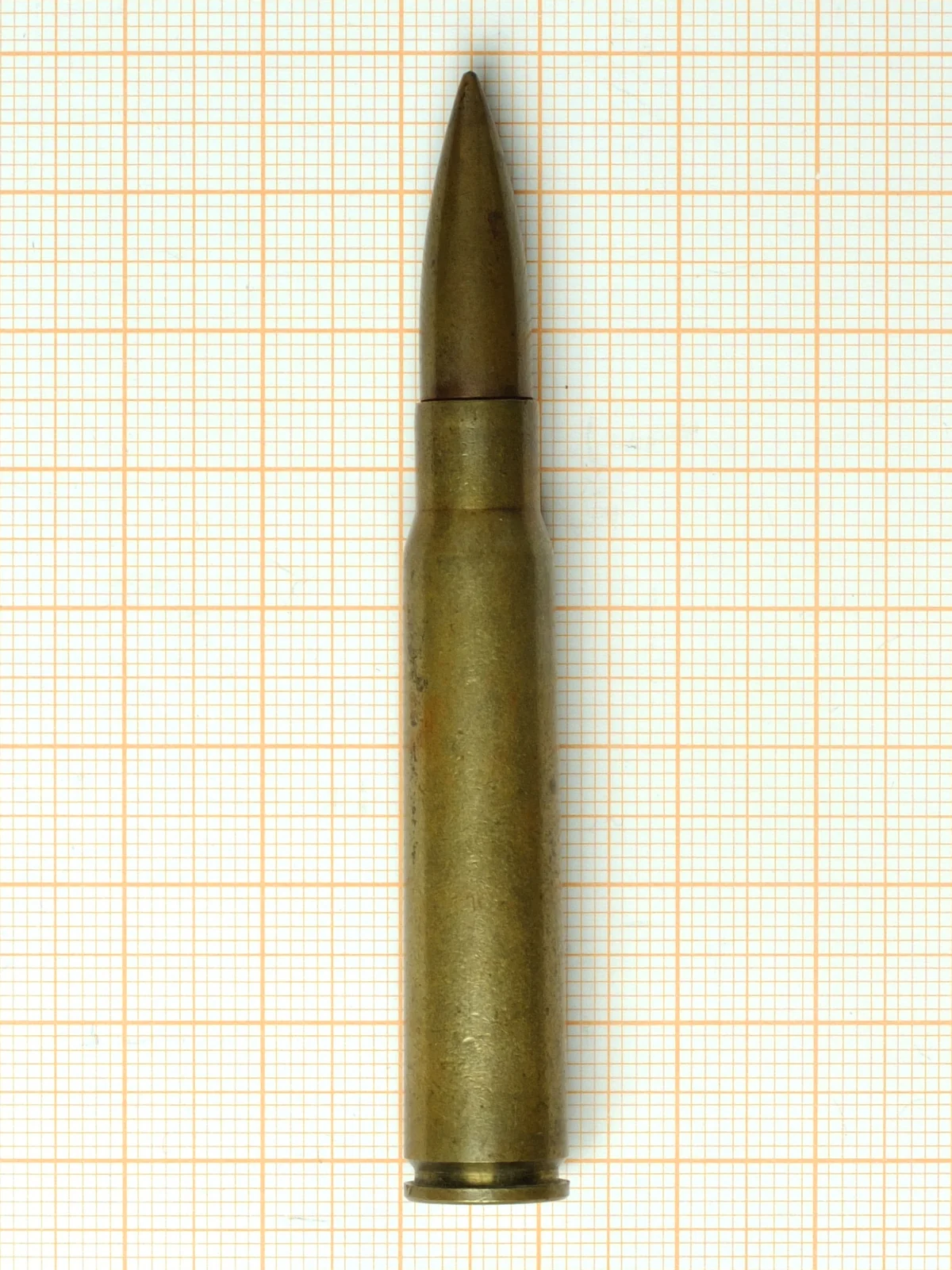

Gallery
Image credit
- Title
- Cartridge 7.92x57mm Mauser CC BY-SA 4.0 by Grasyl
- Author
- Grasyl(attribution required)
- Licence
- CC BY-SA 4.0
- Source
- https://commons.wikimedia.org/wiki/File:Cartridge_7.92x57mm_Mauser_CC_BY-SA_4.0_by_Grasyl.jpg
Detail
Two cartridges wear this name and they are not safely interchangeable. The 1888 original, the M/88, used a round-nosed bullet of 8.08 mm across a bore of 0.318 inches. In 1903 the German army widened the bore to 0.323 inches and adopted the pointed S Patrone to suit it, and a modern 8mm Mauser round fired in a surviving 1888 barrel is a genuinely dangerous mistake rather than a pedantic one. The C.I.P. designation carries the distinction in its suffix: IS is the wider 1905 bore, I alone is the older one.
The 1903 change is also the reason this page carries two loads whose velocities differ by nearly sixty metres per second at similar barrel lengths. One is a military ball round designed to reach out over open ground; the other is a modern hunting load in a heavier bullet, and neither is a correction of the other.
References
- C.I.P. TDCC datasheet, 8 x 57 IS · Tab. I, dated 1984-06-14, revision 2016-05-18 · read 2026-08-27
- 7.92x57mm Mauser · 1362896740 · read 2026-08-27
- Gewehr 98 · 1368993010 · read 2026-08-27
Last verified 2026-08-27 · review status: spot-checked
