7.65×53mm Argentine

Introduced 1889Paul MauserCIP standard

Also known as 7.65×53mm Mauser: the same cartridge under different names, all of which find this page.

Dimensions and pressure

Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.

Identity
Designed by
Paul Mauser
Introduced
1889
Production
not recorded
Standards body
C.I.P.
Case type
Rimless
Case shape
Bottleneck
Dimensions
Bullet diameter
7.94 mm0.3126 insource

Dimension G1.

Bore diameter
not recorded
Case length
53.6 mm2.110 insource

Cartridge maximum, dimension L3.

Overall length
76 mm2.992 insource

Dimension L6.

Rim diameter
12.05 mm0.4744 insource

Dimension R1.

Neck diameter
8.78 mm0.3457 insource

Dimension H2.

Base diameter
12.01 mm0.4728 insource

Dimension P1.

Pressure
Maximum pressure
390 MPa56,565 psisource

Pmax 3900 bar, C.I.P. method.

Pressure standard
C.I.P.

SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.

Loads

Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.

155 gr FMJ-BT

Bullet mass
10.04 g154.9 grestimated

155 gr bullet, Cartridges of the World 11th ed., via the Wikipedia infobox. No test-barrel length is stated for the load's published velocity, so velocity is not recorded.

Cartridge mass
not recorded
Bullet type
FMJ-BT
G1 BC
not recorded
G7 BC
not recorded

174 gr FMJ-BT

Bullet mass
11.28 g174.1 grestimated

174 gr bullet, Cartridges of the World 11th ed., via the Wikipedia infobox. No test-barrel length is stated, so velocity is not recorded.

Cartridge mass
not recorded
Bullet type
FMJ-BT
G1 BC
not recorded
G7 BC
not recorded

Chambered in

Computed from every entry that lists this cartridge. Nothing here is hand-maintained.

No entry on the site is chambered in it yet.

Detail

The 7.65×53mm Argentine is a rimless, bottlenecked rifle cartridge Paul Mauser designed for the Argentine government, which put it into service in 1889 for its Mauser-pattern rifles and carbines. It belongs to the same family of small-bore, smokeless Mauser cartridges as Germany’s own 7×57mm and 7.92×57mm rounds, sharing their rimless bottleneck case design intended for reliable feeding from a box magazine. The cartridge is also known as 7.65×53mm Mauser, after the firm that designed and originally produced it rather than the country that adopted it.

Beyond Argentina, the round saw service with several other Latin American and international forces across the first half of the twentieth century, including use in the Chaco War between Bolivia and Paraguay and the Ecuadorian–Peruvian War, and it remained in military service into the 1970s in some countries. Its 12.01 mm base diameter and 53.6 mm case length place it in the same general size class as other full-power rimless Mauser sporting and military rounds of the era.

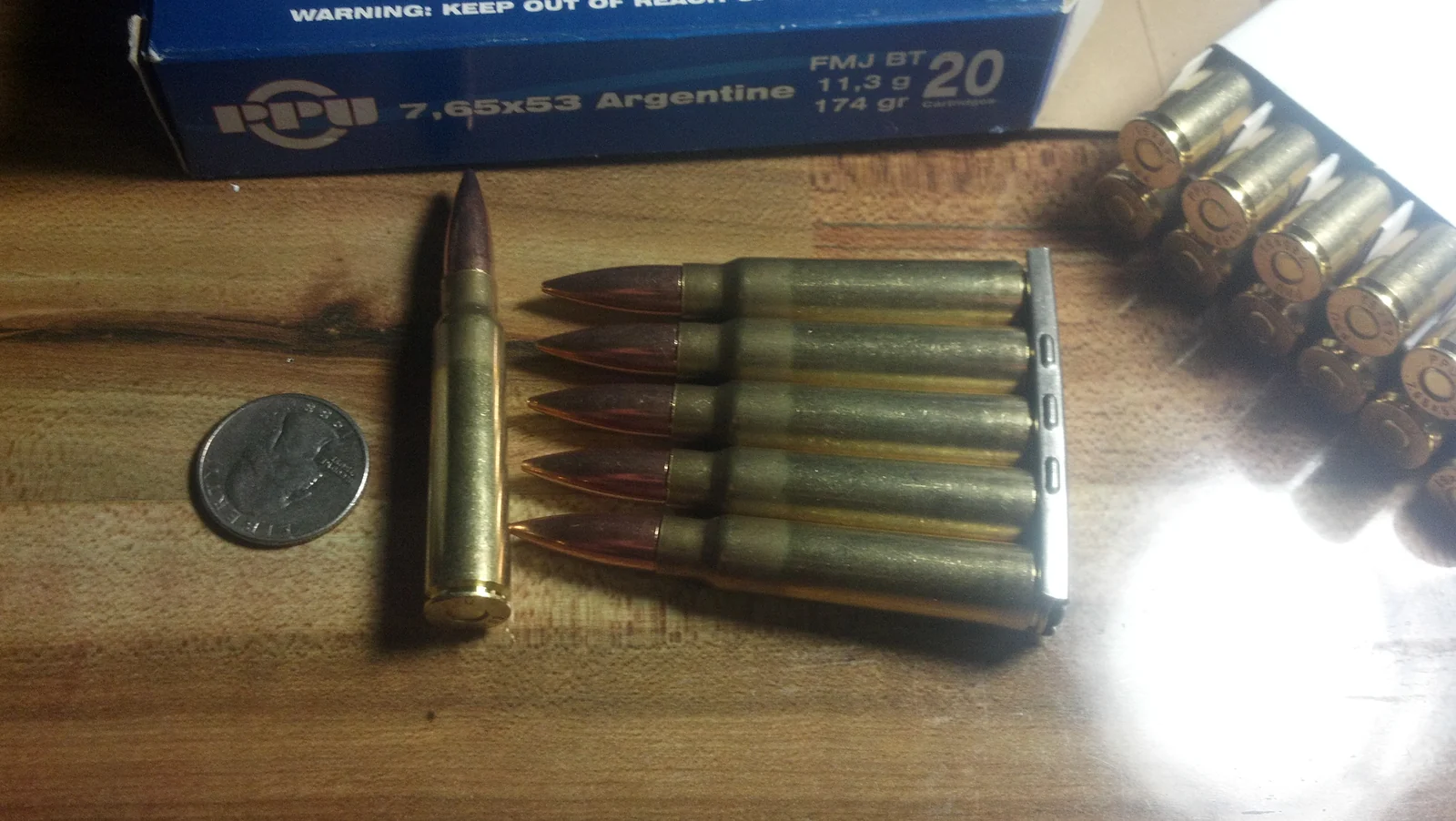

This page’s case and pressure dimensions come from C.I.P.’s published standard and are recorded as verified. Two historical factory bullet weights, 155 and 174 grains, are recorded from a published loading reference, but no test-barrel length is stated for either load’s velocity, so no velocity or energy figure is recorded for this cartridge. No photograph exists of the round being fired or of the Mauser rifles chambered for it on this site; the image shown here is of loaded ammunition only.

References

  1. 7.65×53mm Argentine · 1360558193 · read 2026-09-24
  2. C.I.P. TDCC datasheet — 7,65 x 53 Arg. · 2002-05-15 · read 2026-09-24

Last verified 2026-09-24 · review status: agent-populated
