6mm BR Norma

Introduced 1996NormaCIP standard

Also known as 6 mm BR Norma, 6mm BR, 6mm Norma BR: the same cartridge under different names, all of which find this page.

Dimensions and pressure

Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.

Identity
Designed by
Norma
Introduced
1996
Production
not recorded
Standards body
C.I.P.
Case type
Rimless
Case shape
Bottleneck
Dimensions
Bullet diameter
6.18 mm0.2433 insource
Bore diameter
not recorded
Case length
39.62 mm1.560 insource
Overall length
62 mm2.441 insource
Rim diameter
12.01 mm0.4728 insource
Neck diameter
6.87 mm0.2705 insource
Base diameter
11.96 mm0.4709 insource
Pressure
Maximum pressure
405 MPa58,740 psisource
Pressure standard
C.I.P.

SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.

Loads

Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.

105 gr Diamond Line

Norma

Bullet mass
6.8 g104.9 grsource

6.8 g (105 gr) as published on the product page.

Cartridge mass
not recorded
Bullet type
Moly-coated HPBT
G1 BC
0.517source

Published as a single figure.

G7 BC
not recorded
Sourced velocity by barrel length
BarrelVelocity
660 mm25.98 in850 m/s2,789 fps

90 gr Scenar-L

Lapua

Bullet mass
5.8 g89.51 grsource

5.8 g (90 gr) as published on the product page.

Cartridge mass
not recorded
Bullet type
Scenar-L OTM
G1 BC
0.434source

Published as a single figure.

G7 BC
0.216source

Published as a single figure.

105 gr Scenar-L

Lapua

Bullet mass
6.8 g104.9 grsource

6.8 g (105 gr) as published on the product page.

Cartridge mass
not recorded
Bullet type
Scenar-L OTM
G1 BC
0.472source

Published as a single figure.

G7 BC
0.236source

Published as a single figure.

Chambered in

Computed from every entry that lists this cartridge. Nothing here is hand-maintained.

Detail

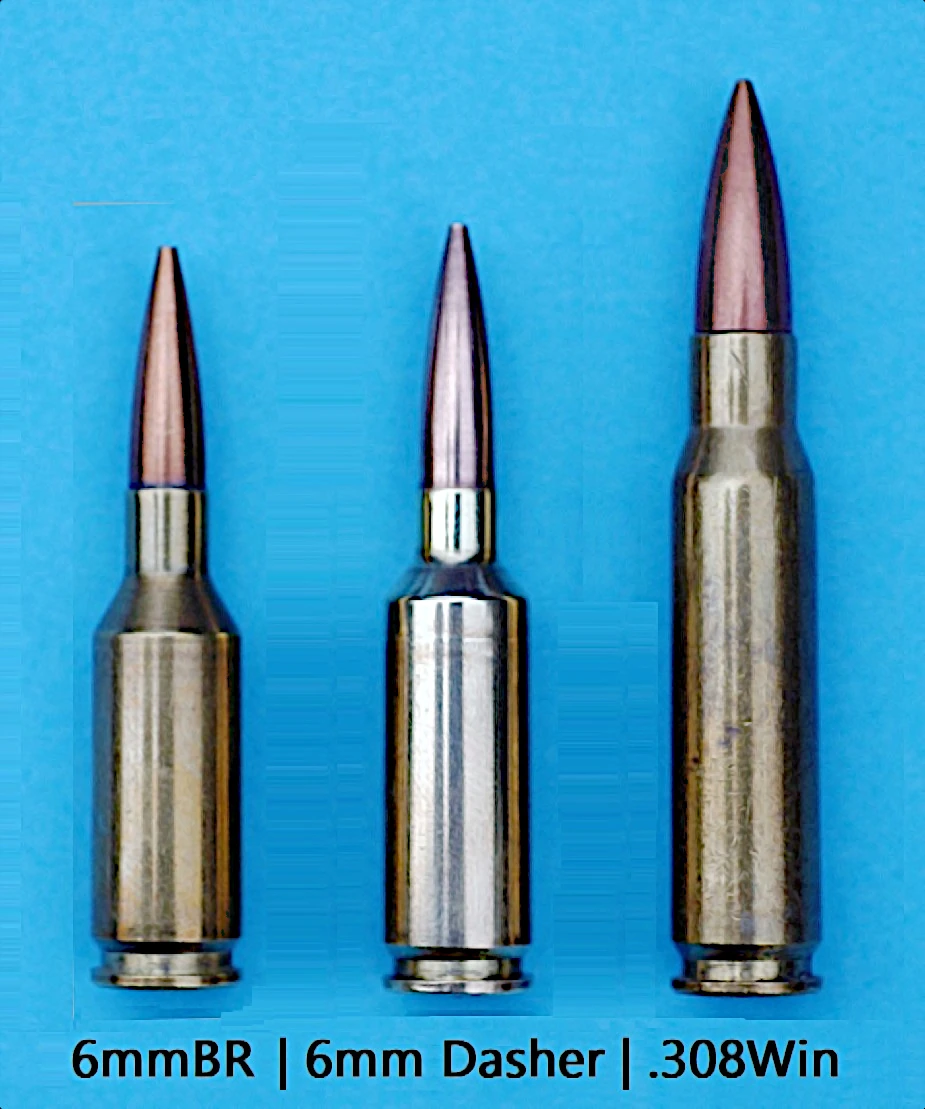

The 6mm BR Norma is the standardised, factory-loaded form of a benchrest wildcat. Soon after the .308 Winchester was cut down into the .308×1.5” Barnes, experimenters necked that short case to take .22 and 6mm bullets, and by 1963 the 6mm version was widely enough used in benchrest competition to be known as the 6mm BR. Remington chambered its 40-X rifle for its own version in 1978, and Norma of Sweden introduced this dimensionally similar version in 1996.

What separates the Norma round from the Remington one is the chamber rather than the case: Norma’s standard gives a longer throat, making room to seat very-low-drag bullets. The short, wide case was designed to balance accuracy, barrel life and case capacity for target shooting, and it has become a common chambering for 300-metre match rifles in ISSF and CISM competition. Several related wildcats grew out of the same case, and C.I.P. lists four variants of the family, of which this is the most widely used.

The dimensions and pressure ceiling on this page come from the C.I.P. datasheet for “6 mm BR Norma”. The Norma load carries a velocity the maker states for a 660 mm barrel; the two Lapua loads record bullet mass and ballistic coefficients only, because Lapua’s product pages give a muzzle velocity without naming the barrel it was measured in.

References

  1. 6mm BR · 1373874567 · read 2026-09-24
  2. C.I.P. TDCC datasheet — 6 mm BR Norma · 2002-05-15 · read 2026-09-24
  3. Norma Diamond Line 6 mm Norma BR 6.8 g · read 2026-09-24
  4. 6 mm B.R. Norma / 5.8 g (90 gr) Scenar-L · read 2026-09-24
  5. 6 mm B.R. Norma / 6.8 g (105 gr) Scenar-L · read 2026-09-24

Last verified 2026-09-24 · review status: draft
