6.5×47mm Lapua

Introduced 2005Nammo Lapua with Grünig & ElmigerCIP standard

Also known as 6,5 x 47 Lapua: the same cartridge under different names, all of which find this page.

Dimensions and pressure

Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.

Identity
Designed by
Nammo Lapua with Grünig & Elmiger
Introduced
2005
Production
not recorded
Standards body
C.I.P.
Case type
Rimless
Case shape
Bottleneck
Dimensions
Bullet diameter
6.71 mm0.2642 insource
Bore diameter
not recorded
Case length
47 mm1.850 insource
Overall length
71 mm2.795 insource
Rim diameter
12.01 mm0.4728 insource
Neck diameter
7.4 mm0.2913 insource
Base diameter
11.95 mm0.4705 insource
Pressure
Maximum pressure
435 MPa63,091 psisource
Pressure standard
C.I.P.

SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.

Loads

Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.

123 gr Scenar

Lapua

Bullet mass
8 g123.5 grsource

8.0 g (123 gr) as published on the product page.

Cartridge mass
not recorded
Bullet type
Scenar OTM
G1 BC
0.527source

Published as a single figure.

G7 BC
0.263source

Published as a single figure.

139 gr Scenar

Lapua

Bullet mass
9 g138.9 grsource

9.0 g (139 gr) as published on the product page.

Cartridge mass
not recorded
Bullet type
Scenar OTM
G1 BC
0.578source

Published as a single figure.

G7 BC
0.29source

Published as a single figure.

Chambered in

Computed from every entry that lists this cartridge. Nothing here is hand-maintained.

Detail

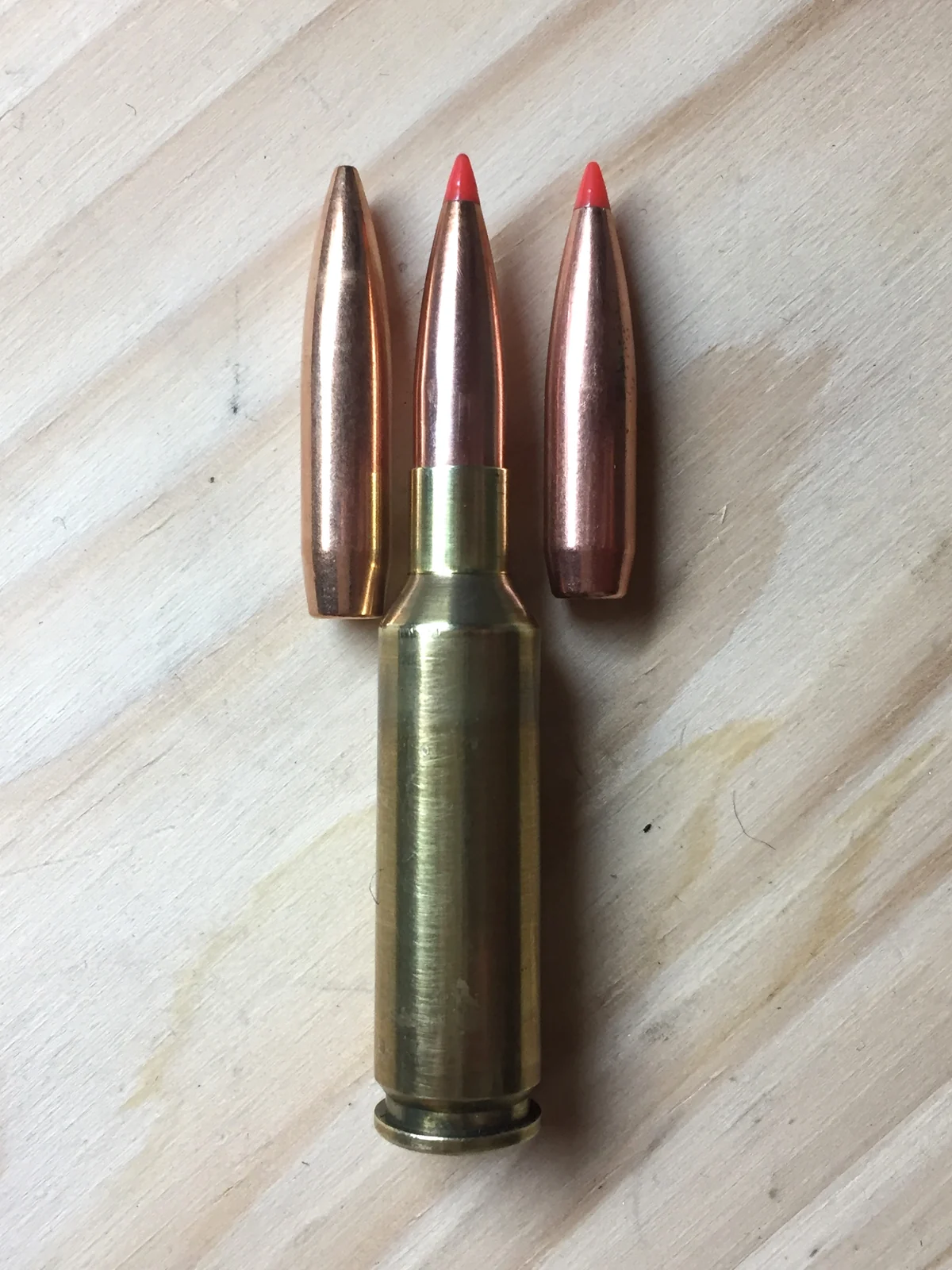

The 6.5×47mm Lapua is a rimless bottleneck target cartridge that the ammunition maker Nammo Lapua developed in 2005 with the Swiss rifle maker Grünig & Elmiger, specifically for competition shooting. It has no direct parent case, though it borrows much of its character from the short, wide-bodied 6mm PPC benchrest round.

Its layout is built around long, slender target bullets. The case neck is long enough to hold such a bullet without its base sitting below the neck, and the chamber dimensions are optimised for target bullets. Its base diameter and overall length are close to those of the .308 Winchester, so it takes the same bolt heads and fits the same short actions and magazines, and it uses a small rifle primer. Its case holds less than those of the 6.5mm Creedmoor and .260 Remington it is usually compared with, and it gives up a little muzzle velocity to both as a result, but it has set records at long range and was the dominant chambering in the Precision Rifle Series in 2016.

The dimensions and pressure ceiling on this page come from the C.I.P. datasheet for “6,5 x 47 Lapua”. Both loads are Lapua’s own factory ammunition, with bullet mass and G1 and G7 ballistic coefficients as the maker publishes them. Lapua’s product pages also give a muzzle velocity for each load but state no barrel length, and the velocities in the encyclopedia’s table come from reloading data, so no velocity is recorded here.

References

  1. 6.5×47mm Lapua · 1292319718 · read 2026-09-24
  2. C.I.P. TDCC datasheet — 6,5 x 47 Lapua · 2014-05-20 · read 2026-09-24
  3. 6.5×47 Lapua / 8.0 g (123 gr) Scenar · read 2026-09-24
  4. 6.5×47 Lapua / 9.0 g (139 gr) Scenar · read 2026-09-24

Last verified 2026-09-24 · review status: draft
