.22 BB

Introduced 1845Louis-Nicolas FlobertCIP standard

Also known as .22 BB Cap, 6mm Flobert — the same cartridge under different names, all of which find this page.

Dimensions and pressure

Generated from the schema, like every specification table on this site, so a figure recorded on this entry cannot be missing from the table.

Identity
Designed by
Louis-Nicolas Flobert
Introduced
1845
Production
not recorded
Standards body
C.I.P.
Case type
Rimmed
Case shape
Straight
Dimensions
Bullet diameter
5.72 mm0.2252 insource
Bore diameter
not recorded
Case length
6.86 mm0.2701 insource
Overall length
11.18 mm0.4402 insource
Rim diameter
7.06 mm0.2780 insource
Neck diameter
5.72 mm0.2252 insource
Base diameter
5.72 mm0.2252 insource
Pressure
Maximum pressure
not recorded
Pressure standard
not recorded

SAAMI and C.I.P. measure pressure differently and their figures are not interchangeable, which is why the body is always named beside the figure.

Loads

Velocity is recorded per barrel length as published. A gun page interpolates between these points and never projects beyond them.

20 gr RN

Bullet mass
1.296 g20.00 grestimated

Wikipedia's infobox figure (20 gr), citing the book Cartridges of the World, which cannot carry a `verified` status without a clickable source.

Cartridge mass
not recorded
Bullet type
round nose
G1 BC
not recorded
G7 BC
not recorded

18 gr RN

Bullet mass
1.166 g17.99 grestimated

Wikipedia's infobox figure (18 gr), citing the book Cartridges of the World, which cannot carry a `verified` status without a clickable source.

Cartridge mass
not recorded
Bullet type
round nose
G1 BC
not recorded
G7 BC
not recorded

16 gr RN

Bullet mass
1.037 g16.00 grestimated

Wikipedia's infobox figure (16 gr), citing the book Cartridges of the World, which cannot carry a `verified` status without a clickable source.

Cartridge mass
not recorded
Bullet type
round nose
G1 BC
not recorded
G7 BC
not recorded

Chambered in

Computed from every entry that lists this cartridge. Nothing here is hand-maintained.

No entry on the site is chambered in it yet.

Detail

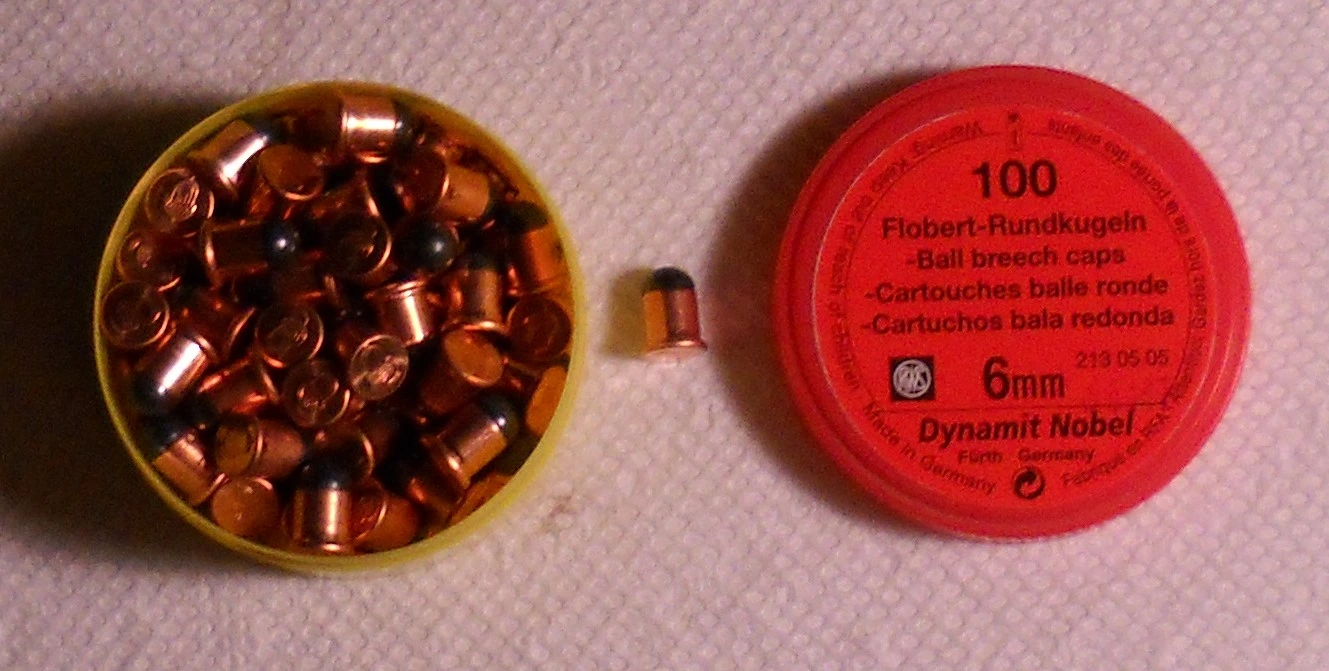

The .22 BB Cap is the round Louis-Nicolas Flobert built in 1845 by seating a plain lead ball directly onto a percussion cap, without any propellant charge of its own — the priming compound alone drives the ball, at very low velocity and with almost no report, which is the entire point of a parlour or gallery cartridge meant for shooting indoors. “BB” here has nothing to do with airgun BBs; it stands for “bulleted breech”, describing the ball seated in the case mouth, and the round is sold across Europe under the name 6mm Flobert.

Its later relative, the .22 CB Cap (“Conical Bullet”), shares the same tiny case but replaces the round ball with a conical bullet and a small charge of propellant, giving it a touch more velocity and range while remaining about as quiet. Both are considered the same cartridge under the 6mm Flobert name in Europe, but they are catalogued as two distinct American products, and only the BB Cap fires a plain round ball with no powder charge at all — the defining mechanical difference between the two.

Every dimension in this entry comes from the C.I.P. datasheet for “22 BB Cap”, which lists no maximum pressure figure at all. Wikipedia’s infobox gives three bullet weights, all cited to the book Cartridges of the World, which cannot carry a verified status without a clickable source, so only bullet mass is recorded for each and no velocity or ballistic coefficient appears here.

References

  1. .22 BB · 1368385037 · read 2026-09-02
  2. C.I.P. TDCC datasheet — 22 BB Cap · 2000-06-07 · read 2026-09-02
