Toyota emblem

Generation

Toyota RAV4 (XA50)

Toyota RAV4 (XA50), 2018-2025

Produced
2018–2025
Code
XA50
Designer
Hideo Koyama, Daisuke Iguchi, Shun Kawaguchi, Junya Furuta, Tatsuya Sonoda

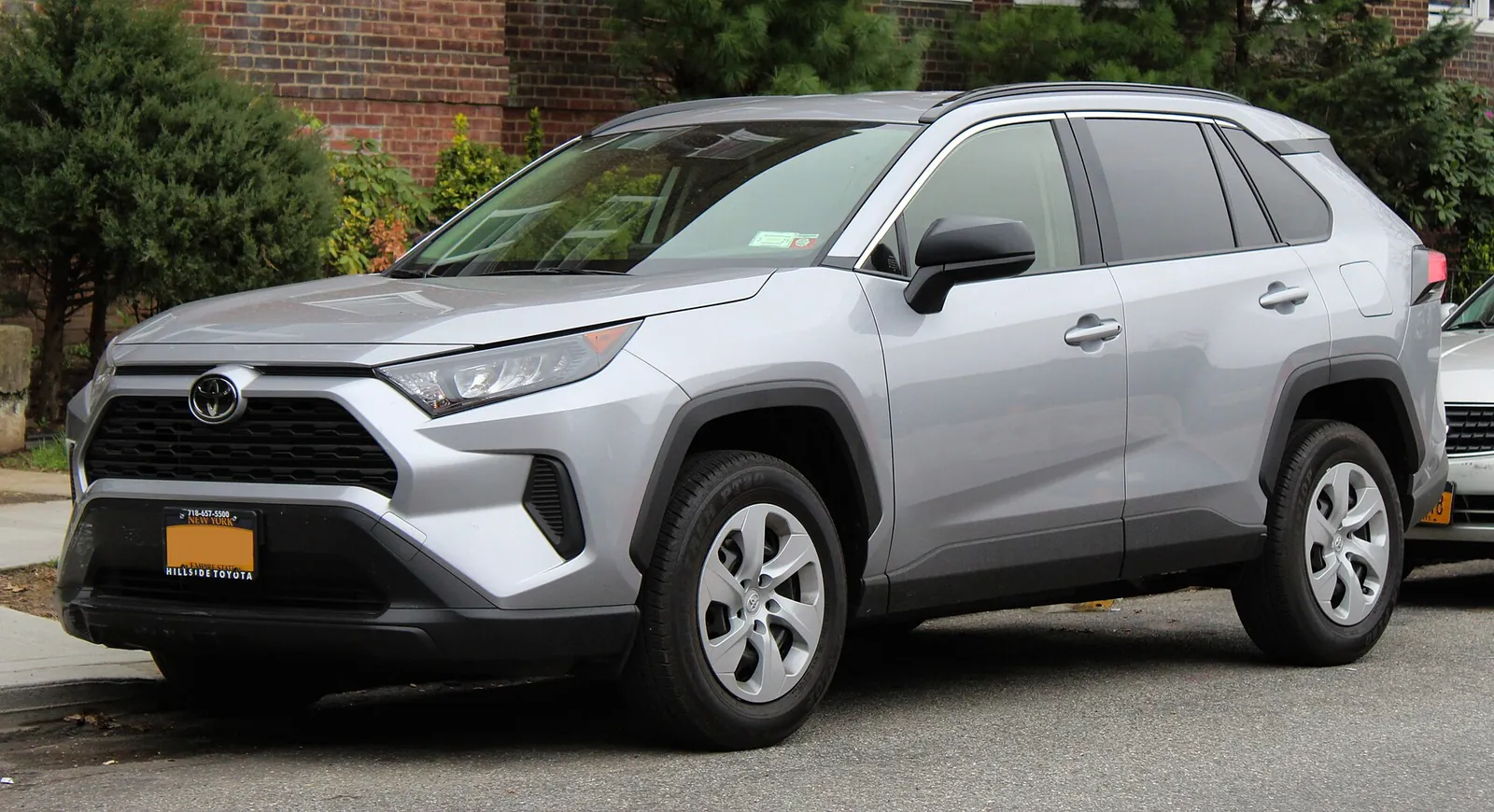

Grey fifth-generation Toyota RAV4 LE photographed from the front three-quarter angle

Image credit

File
File:2019 Toyota RAV4 LE 2.5L front 4.14.19.jpg
Author (attribution required)
Kevauto

Unveiled at the March 2018 New York International Auto Show on Toyota’s TNGA-K platform, shared with the XV70 Camry, the fifth RAV4 dropped diesel entirely and leaned harder into the hybrid drivetrain that has come to define the nameplate.[1] In December 2019 it gained a plug-in hybrid variant, sold as the RAV4 Prime in North America, whose 302 hp combined output briefly made it the second-quickest model in Toyota’s entire lineup after the GR Supra.

Both trims record combined, published system power figures rather than a sum of engine and motor outputs. That is the same discipline this site applies to every hybrid. The Prime’s torque figure, by contrast, is the combustion engine alone: Toyota publishes an uprated engine torque figure for the Prime over the standard hybrid, but no combined system torque figure for either, so this entry does not invent one.

Overview

Manufacturer
Toyota
Produced
2018–2025
Model code
XA50
Designer
Hideo Koyama, Daisuke Iguchi, Shun Kawaguchi, Junya Furuta, Tatsuya Sonoda
Segment
C-SUV (Europe) / Compact SUV (US)
Positioning
Mainstream
Assembly
  • Toyota, Aichi, Japan (Takaoka plant)
  • Georgetown, Kentucky, United States (TMMK)
  • Woodstock/Cambridge, Ontario, Canada (TMMC)

Dimensions

Length
4,570 mm

Published as a range of 4,570-4,600 mm across trims/markets; lowest value recorded here.

[1]

Width
1,855 mm

[1]

Height
1,660 mm

[1]

Wheelbase
2,690 mm

[1]

Kerb weight
1,680 kg

Hybrid, low end of a published 1,680-1,720 kg range; the petrol-only range is lighter at 1,530-1,640 kg.

[1]

Hybrid AWD

Trim · 2018–2025 · A25A-FXS

Power
163 kW

Published combined system output figure, not a sum performed here. Front motor 88 kW, rear motor 40 kW (AWD-i), plus the combustion engine.

[1]

Torque
Not yet available
Kerb weight
1,680 kg

Low end of a published 1,680-1,720 kg range for hybrid variants.

[1]

0–100 km/h
Not yet available
Top speed
Not yet available
Fuel economy
Not yet available
Electric consumption
Not yet available
Battery capacity
1.6 kWh

Nickel-metal hydride pack.

[1]

Electric range
Not yet available
CO₂
Not yet available
Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
2,487 cc

Article names it '2.5 L'; recorded to the well-documented A25A displacement.

[1]

Boot volume
Not yet available
Seats
5
Engine
inline-4, Atkinson cycle, hybrid · A25A-FXS
Drivetrain
All-wheel drive

PHEV (Prime)

Trim · 2020–2025 · A25A-FXS

Power
225 kW

Published combined system output, 302 hp, converted at 1 hp = 0.745699872 kW. Not a sum performed here; front motor rated 134 kW alone.

[1]

Torque
228 N⋅m

Combustion engine only, published as 168 lb-ft at 2,800 rpm, converted at 1.355818 Nm/lb-ft (uprated over the non-plug-in hybrid's engine tune). No combined system torque figure is published, and motor and engine torque cannot be summed.

[1]

Kerb weight
Not yet available
0–100 km/h
6.2 s

Published directly as a 0-100 km/h figure (Toyota also separately claims 5.8 s 0-60 mph; the two are not the same benchmark and this entry records only the metric figure).

[1]

Top speed
Not yet available
Fuel economy
Not yet available
Electric consumption
Not yet available
Battery capacity
18.1 kWh

Lithium-ion pack.

[1]

Electric range
Not yet available
CO₂
Not yet available
Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
2,487 cc

[1]

Boot volume
Not yet available
Seats
5
Engine
inline-4, Atkinson cycle, plug-in hybrid · A25A-FXS
Drivetrain
All-wheel drive

Sources & confidence

Every figure above carries a status. Nothing on this page is estimated without saying so, and nothing missing has been filled in with a guess.

Last verified
2026-09-04
Review status
Compiled from cited sources

Photography on this page is credited on each image. Tap theion a photograph for its author, licence and source.

References

Every sourced figure and every cited claim on this page, numbered. Wikipedia articles record the revision they were read at, because the article will have changed by the time you check it.

  1. [1]

    Toyota RAV4. Wikipedia · revision 1373072652 · read 2026-09-04

    WikipediaCC BY-SA 4.0
