Generation

Mazda RX-8 (SE3P)

Mazda RX-8 (SE3P), 2003-2012

Produced
2003–2012
Code
SE3P
Designer
Ikuo Maeda

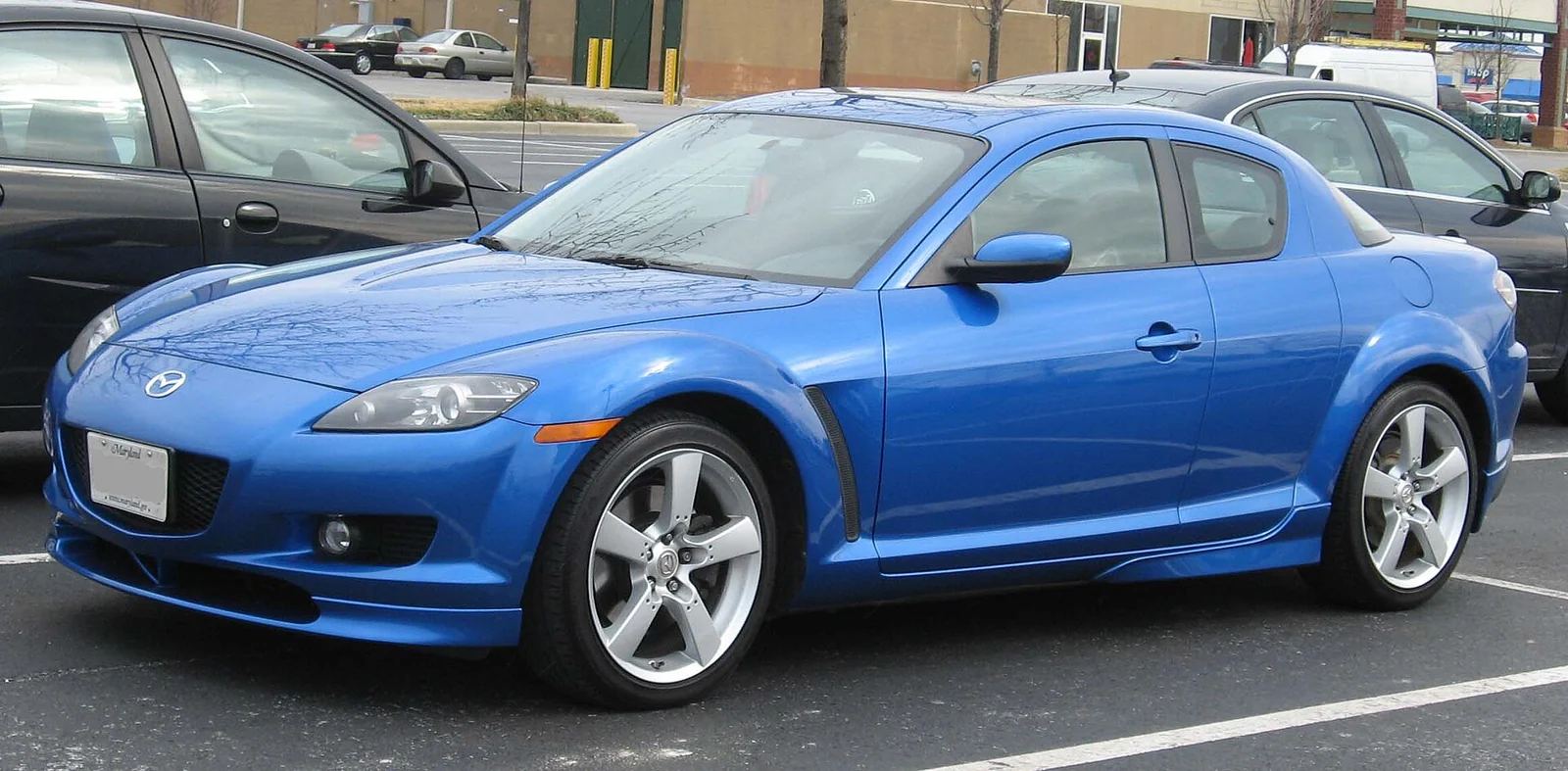

Blue pre-facelift Mazda RX-8 photographed from the front three-quarter angle in a car park, showing its four-door quad-coupe silhouette with no visible B-pillar

Image credit

File
File:Mazda RX-8.jpg
Author
IFCAR
Licence
Public domain

Released into the public domain by the photographer.

Body style

Powertrain

The only RX-8 generation, launched worldwide for 2003 and built for nine years without a facelift-driven body change beyond a longer nose and new bumpers for 2009.[1] Two states of tune of the naturally aspirated Renesis engine were sold throughout: a lower-revving 4-port version and a free-revving 6-port version limited to 9,000 rpm, the closest the RX-8 came to a base/performance split, since Mazda never offered a turbocharged version of this engine to the public.

The car’s engine table, quoted here, is European and gives 0–100 km/h and a metric top speed directly, so none of those figures needed converting from a US 0–60 mph time, unlike the RX-7 entries, where the source only ever gives the imperial figure. The trade-off is that the same table’s CO2 row does not name a test cycle, which is recorded as a gap rather than guessed at.

Overview

Manufacturer
Mazda
Produced
2003–2012
Model code
SE3P
Designer
Ikuo Maeda
Segment
S-segment (Europe) / Sports car (US)
Positioning
Mainstream
Assembly
Mazda, Hiroshima, Japan (Hiroshima Plant)

Dimensions

Length
4,425 mm

Pre-facelift (2003-2008) length. The 2009-2012 facelift grew to 4,470 mm.

[1]

Width
1,770 mm

[1]

Height
1,340 mm

[1]

Wheelbase
2,703 mm

[1]

Kerb weight
1,309 kg

Lowest figure in the published range: manual-transmission cars ranged 1,309-1,373 kg depending on trim, automatic cars were 1,384 kg.

[1]

Renesis 4-Port

Trim · 2003–2008 · 13B-MSP Renesis

Power
143 kW

192 hp at 7,000 rpm, converted at 1 hp = 0.74569987 kW. Published for the European-market car; North American cars of this same low-power tune were rated 189 hp.

[1]

Torque
198 N⋅m

At 5,000 rpm.

[1]

Kerb weight
Not yet available
0–100 km/h
7.2 s

[1]

Top speed
224 km/h

[1]

Fuel economy
Not yet available
CO₂
284 g/km

European-market figure; the source's engine table does not name the test cycle.

[1]

Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
1,308 cc

[1]

Boot volume
Not yet available
Seats
4
Engine
twin-rotor Wankel, 4-port · 13B-MSP Renesis
Drivetrain
Rear-wheel drive

Renesis 6-Port (Type S)

Trim · 2003–2008 · 13B-MSP Renesis

Power
172 kW

231 hp at 8,200 rpm from the source's engine table, converted at 1 hp = 0.74569987 kW. The article body separately quotes this North American 6-speed manual tune as 232 hp at 8,250 rpm; the two figures are within 1% of each other and are treated as the same published output rather than a conflict.

[1]

Torque
212 N⋅m

At 5,500 rpm.

[1]

Kerb weight
Not yet available
0–100 km/h
6.4 s

[1]

Top speed
235 km/h

[1]

Fuel economy
Not yet available
CO₂
284 g/km

European-market figure; the source's engine table does not name the test cycle.

[1]

Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
1,308 cc

[1]

Boot volume
Not yet available
Seats
4
Engine
twin-rotor Wankel, 6-port · 13B-MSP Renesis
Drivetrain
Rear-wheel drive

Renesis II 4-Port

Trim · 2009–2012 · 13B-MSP Renesis II

Power
158 kW

212 hp at 7,500 rpm, converted at 1 hp = 0.74569987 kW.

[1]

Torque
216 N⋅m

At 5,500 rpm.

[1]

Kerb weight
Not yet available
0–100 km/h
7.2 s

[1]

Top speed
230 km/h

[1]

Fuel economy
Not yet available
CO₂
258 g/km

European-market figure; the source's engine table does not name the test cycle.

[1]

Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
1,308 cc

[1]

Boot volume
Not yet available
Seats
4
Engine
twin-rotor Wankel, 4-port · 13B-MSP Renesis II
Drivetrain
Rear-wheel drive

Renesis II 6-Port (R3)

Trim · 2009–2012 · 13B-MSP Renesis II

Power
173 kW

232 hp at 8,500 rpm, converted at 1 hp = 0.74569987 kW.

[1]

Torque
216 N⋅m

At 5,500 rpm.

[1]

Kerb weight
Not yet available
0–100 km/h
6.3 s

[1]

Top speed
237 km/h

[1]

Fuel economy
Not yet available
CO₂
299 g/km

European-market figure; the source's engine table does not name the test cycle.

[1]

Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
1,308 cc

[1]

Boot volume
Not yet available
Seats
4
Engine
twin-rotor Wankel, 6-port · 13B-MSP Renesis II
Drivetrain
Rear-wheel drive

Sources & confidence

Every figure above carries a status. Nothing on this page is estimated without saying so, and nothing missing has been filled in with a guess.

Last verified
2026-09-24
Review status
Compiled from cited sources

Photography on this page is credited on each image. Tap theion a photograph for its author, licence and source.

References

Every sourced figure and every cited claim on this page, numbered. Wikipedia articles record the revision they were read at, because the article will have changed by the time you check it.

  1. [1]

    Mazda RX-8. Wikipedia · revision 1372478695 · read 2026-09-24
