Kia wordmark: the letters K I A in a continuous, unbroken flowing script

Generation

Kia Rio (YB)

Kia Rio (YB), 2016-2023

Produced
2016–2023
Code
YB
Designer
Peter Schreyer

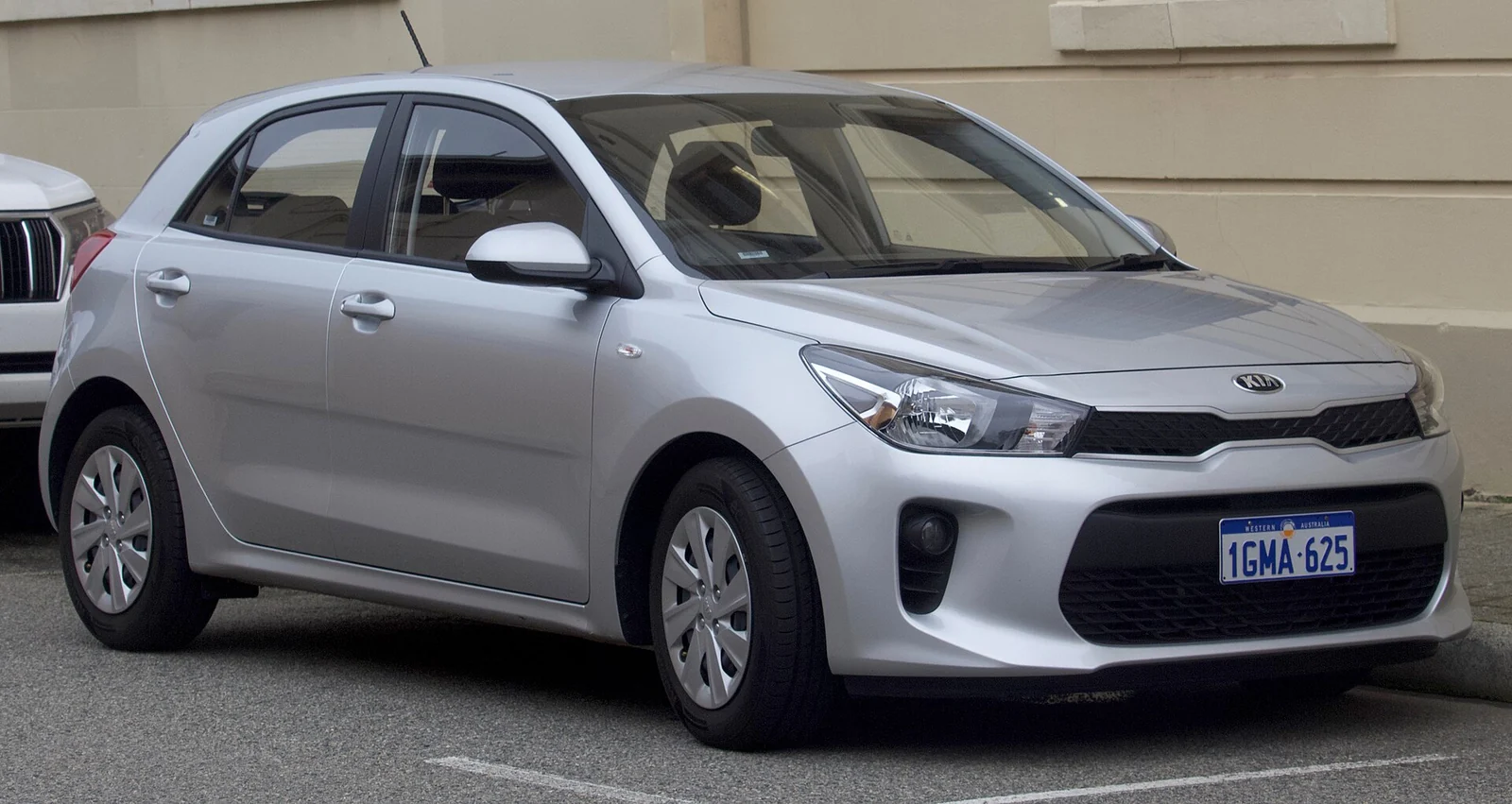

Silver fourth-generation Kia Rio five-door hatchback photographed from the front three-quarter angle

Image credit

File
File:2018 Kia Rio (YB) S 5-door hatchback (2018-08-06) 01.jpg
Author (attribution required)
EurovisionNim

The fourth-generation Rio, revealed at the 2016 Paris Motor Show and, for the first time, an export-only design (South Korea itself was offered the related Stonic crossover instead).[1] Global production ran until December 2023; a related but mechanically different car, built on a longer wheelbase for Russia and China under the FB/UC codes and sold there as the Kia K2, continued for longer and is not this generation.

The North American engine swap partway through this car’s life is recorded as two separate trims rather than one, because the two are genuinely different engines with different published outputs (130 hp GDi, then 120 hp MPi) rather than a running change to the same unit. Dimensions and kerb weight are each published as ranges spanning body style and trim, so the lowest figure in each range is recorded at generation level, not assigned to a specific trim.

Overview

Manufacturer
Kia
Produced
2016–2023
Model code
YB
Designer
Peter Schreyer
Segment
B-segment (Europe) / Subcompact (US)
Positioning
Economy
Assembly
  • Gwangmyeong, South Korea (Sohari Plant)
  • Pesqueria, Mexico (KMMX)
  • Batna, Algeria (GLOVIZ)

Dimensions

Length
4,065 mm

Hatchback figure; the sedan, sold mainly in the Americas, is 4,420 mm.

[1]

Width
1,725 mm

Published as a 1,725-1,740 mm range depending on trim; lowest figure recorded here.

[1]

Height
1,450 mm

Published as a 1,450-1,470 mm range depending on trim; lowest figure recorded here.

[1]

Wheelbase
2,580 mm

[1]

Kerb weight
1,110 kg

Published as a 1,110-1,303 kg range across the model line-up; the lowest figure in the range is recorded here at generation level, not assigned to any one trim.

[1]

1.6 Gamma GDi (North America)

Trim · 2016–2019 · Gamma GDi

Power
97 kW

130 hp (SAE, North American market), converted at 1 hp = 0.745699872 kW (96.9 kW, rounded to 97). Replaced from the 2020 model year by a lower-output MPi engine rated at 120 hp.

[1]

Torque
Not yet available
Kerb weight
Not yet available
0–100 km/h
Not yet available
Top speed
Not yet available
Fuel economy
7.4 L/100 km

EPA combined 32 mpg (US) for the 2018 automatic, converted at 235.215 L-mi/100km-gal.

[2]

CO₂
174 g/km

EPA tailpipe CO2, 280 g/mi, converted at 1.609344 km/mi (US cycle).

[2]

Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
Not yet available
Boot volume
396 L

EPA luggage volume, 14 cu ft, converted at 28.3168 L/cu ft. EPA's method is not comparable with a European VDA boot figure.

[2]

Engine
inline-4, Gamma GDi · Gamma GDi
Drivetrain
Front-wheel drive

1.6 Gamma II MPi (North America)

Trim · 2020–2023 · G4FM

Power
89 kW

120 hp (SAE, North American market), converted at 1 hp = 0.745699872 kW (89.5 kW, rounded to 89). Introduced for the 2020 model year in place of the higher-output 130 hp GDi engine, with improved EPA fuel economy from dual-port injection.

[1]

Torque
Not yet available
Kerb weight
Not yet available
0–100 km/h
Not yet available
Top speed
Not yet available
Fuel economy
Not yet available
CO₂
Not yet available
Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
1,598 cc

[1]

Boot volume
Not yet available
Engine
inline-4, Gamma II MPi (mechanically identical to the Hyundai Smartstream G4FM) · G4FM
Drivetrain
Front-wheel drive

Sources & confidence

Every figure above carries a status. Nothing on this page is estimated without saying so, and nothing missing has been filled in with a guess.

Last verified
2026-09-24
Review status
Compiled from cited sources

Photography on this page is credited on each image. Tap theion a photograph for its author, licence and source.

References

Every sourced figure and every cited claim on this page, numbered. Wikipedia articles record the revision they were read at, because the article will have changed by the time you check it.

  1. [1]

    Kia Rio. Wikipedia · revision 1375987114 · read 2026-09-24

    WikipediaCC BY-SA 4.0

    Single article covering all generations (DC, JB, UB/QB, YB/FB) by section.

  2. [2]

    2018 Kia Rio (Auto S6, 1.6 L) — EPA fuel economy record (vehicle 39330). US EPA / US Department of Energy · read 2026-09-24

    DatasetPublic domain (US Government work)Cited by the specifications
