Hyundai badge: a stylised, slanted letter H inside an oval

Generation

Hyundai Tucson (NX4)

Hyundai Tucson (NX4), 2020-present

Produced
2020–present
Code
NX4
Designer
Kim Jun-Ho

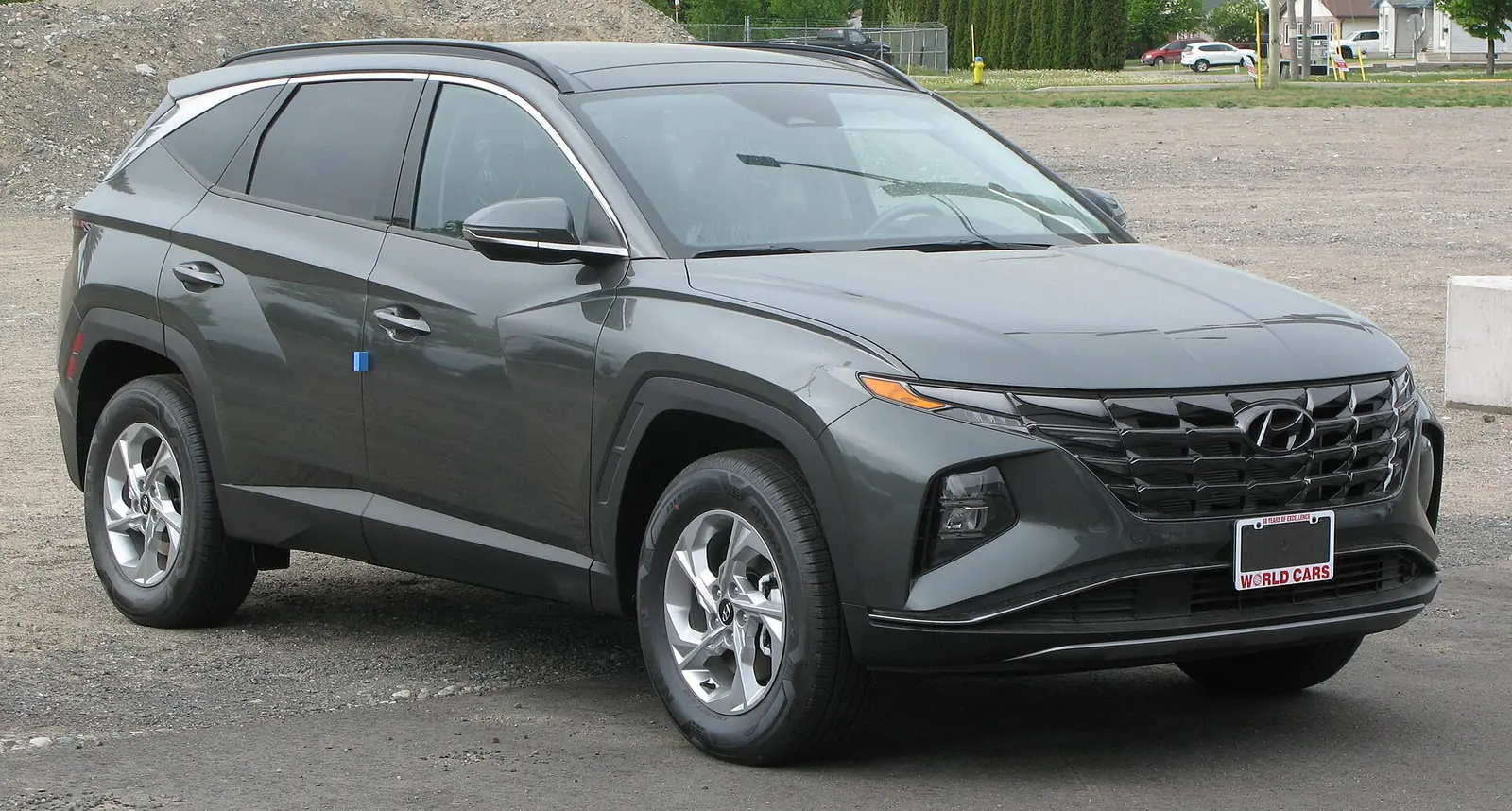

Dark grey fourth-generation Hyundai Tucson photographed from the front three-quarter angle, showing its angular jewel-like grille and geometric daytime running lights

Image credit

File
File:2022 Hyundai Tucson Preferred, Front Right, 05-24-2021.jpg
Author (attribution required)
SsmIntrigue

The fourth-generation Tucson, revealed in September 2020 with sharply faceted bodywork and a “parametric jewel” grille that hides its daytime running lights inside a geometric pattern of chrome facets.[1] It is built on a shortened version of the Santa Fe’s platform and, unusually, sold in two different lengths at once: a short wheelbase for Europe and the Middle East, and a long wheelbase for most other markets including North America, China and Korea.

Only the two straightforward petrol engines are recorded here; Hyundai also sells hybrid and plug-in hybrid versions of this generation, whose system outputs are published figures rather than sums of engine and motor, and are left for a future pass rather than approximated. Dimensions and weight are each published as ranges spanning wheelbase and trim, so the lowest figure in each range is recorded at generation level, not assigned to a specific trim.

Overview

Manufacturer
Hyundai
Produced
2020–present
Model code
NX4
Designer
Kim Jun-Ho
Segment
C-SUV (Europe) / Compact SUV (US)
Positioning
Mainstream
Assembly
  • Ulsan, South Korea
  • Nosovice, Czechia (Hyundai Motor Manufacturing Czech)
  • Montgomery, Alabama, US (Hyundai Motor Manufacturing Alabama)
  • Beijing, China (Beijing Hyundai)

Dimensions

Length
4,500 mm

Short-wheelbase (SWB) version sold in Europe and the Middle East, published as a 4,500-4,510 mm range; the long-wheelbase (LWB) version sold in most other markets is 4,630-4,670 mm. Lowest figure of the SWB range recorded here.

[1]

Width
1,865 mm

[1]

Height
1,650 mm

Published as a 1,650-1,690 mm range depending on wheelbase/trim; lowest figure recorded here.

[1]

Wheelbase
2,680 mm

Short-wheelbase (SWB) figure; the long-wheelbase (LWB) version used in most non-European markets is 2,755 mm.

[1]

Kerb weight
1,491 kg

Published as a 1,491-1,700 kg range across the line-up, including hybrid and PHEV variants; the lowest figure is recorded here at generation level, not assigned to any one trim.

[1]

1.6 T-GDi

Trim · 2020–present · G4FP

Power
132 kW

180 PS at 5,500 rpm, converted at 1 PS = 0.73549875 kW (132.4 kW, rounded to 132).

[1]

Torque
265 N⋅m

27 kgf-m at 1,500-4,500 rpm, converted at 9.80665 N per kgf (264.8 N-m, rounded to 265).

[1]

Kerb weight
Not yet available
0–100 km/h
8.8 s

FWD figure; AWD is quoted at 9.0s.

[1]

Top speed
201 km/h

[1]

Fuel economy
Not yet available
CO₂
Not yet available
Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
1,598 cc

[1]

Boot volume
Not yet available
Engine
inline-4 turbocharged, Smartstream G1.6 · G4FP
Drivetrain
Front-wheel drive

2.0 MPi

Trim · 2021–present · G4NJ

Power
115 kW

156 PS at 6,200 rpm, converted at 1 PS = 0.73549875 kW (114.7 kW, rounded to 115).

[1]

Torque
192 N⋅m

19.6 kgf-m at 4,500 rpm, converted at 9.80665 N per kgf (192.2 N-m, rounded to 192).

[1]

Kerb weight
Not yet available
0–100 km/h
10.8 s

FWD with 6-speed manual. AWD is quoted at 11.1s; the automatic-gearbox version is slightly slower again.

[1]

Top speed
186 km/h

[1]

Fuel economy
Not yet available
CO₂
Not yet available
Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
1,999 cc

[1]

Boot volume
Not yet available
Engine
inline-4, Smartstream G2.0 MPi · G4NJ
Drivetrain
Front-wheel drive

Sources & confidence

Every figure above carries a status. Nothing on this page is estimated without saying so, and nothing missing has been filled in with a guess.

Last verified
2026-09-24
Review status
Compiled from cited sources

Photography on this page is credited on each image. Tap theion a photograph for its author, licence and source.

References

Every sourced figure and every cited claim on this page, numbered. Wikipedia articles record the revision they were read at, because the article will have changed by the time you check it.

  1. [1]

    Hyundai Tucson. Wikipedia · revision 1375226507 · read 2026-09-24

    WikipediaCC BY-SA 4.0

    Single article covering all generations (JM, LM, TL, NX4) by section.
