The Mercedes-Benz three-pointed star, rendered in chrome, inside a circular ring

Generation

Mercedes-Benz G-Class (W463, first generation)

Mercedes-Benz G-Class (W463, first generation), 1990-2018

Produced
1990–2018
Code
W463
Designer
Bruno Sacco

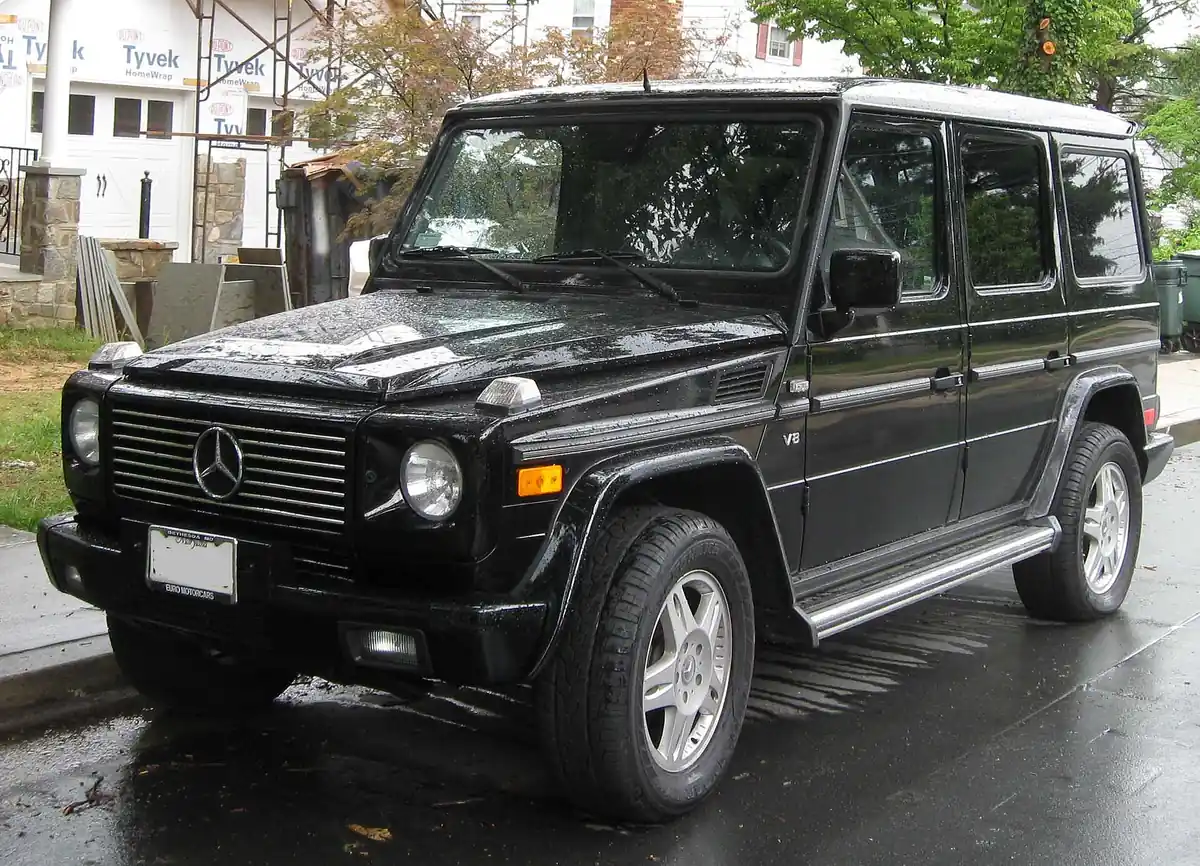

Black first-generation Mercedes-Benz G-Class SUV photographed from the front three-quarter angle on a wet street, with a boxy body and a large chrome grille bearing a central star

Image credit

File
File:Mercedes-Benz G500.jpg
Author
IFCAR
Licence
Public domain

Released into the public domain by the photographer.

Assigned a new chassis code in 1990 as an extensive revision of the original W460, the first W463 is the car that turned the G from a spartan military vehicle into a luxury model sold next to the S-Class: wood trim, leather, ABS and full-time four-wheel drive, on the same ladder-frame chassis and door-hinge silhouette.[1] It stayed in production for 28 years without a full redesign, ending up with the widest range of engines Mercedes ever fitted to one model: four-cylinder to V12, naturally aspirated to twin-turbo.

The two trims recorded here bracket that range. The G 500 of 1998 is the mainstream V8, sold once Mercedes finally brought the G-Class to the United States. The G 55 AMG Kompressor of 2004 added a supercharger to the same V8 family for 350 kW and a 5.6-second run to 100 km/h in a vehicle that still, underneath, was built to cross a desert.

Overview

Manufacturer
Mercedes-Benz
Produced
1990–2018
Model code
W463
Designer
Bruno Sacco
Segment
D-SUV (Europe) / Mid-size SUV (US)
Positioning
Luxury
Assembly
Magna Steyr, Graz, Austria

Dimensions

Length
4,661 mm

Infobox publishes only in inches, as a range across the model's 28-year run: 183.5 in (pre-2003), 185.6 in (2004-09 LWB), 184.5 in (2010-18). Stored as the lowest, converted at 25.4 mm/in (183.5 in = 4660.9 mm, rounded to 4661).

[1]

Width
1,760 mm

Infobox range in inches, 69.3-73.4 in across body and AMG variants over the run. Stored as the lowest, converted at 25.4 mm/in (69.3 in = 1760.2 mm).

[1]

Height
1,836 mm

Infobox range in inches, 72.3-77.8 in across the run. Stored as the lowest, converted at 25.4 mm/in (72.3 in = 1836.4 mm).

[1]

Wheelbase
2,400 mm

2-door short-wheelbase figure; the 4-door long-wheelbase body sits on a 2850 mm wheelbase.

[1]

Kerb weight
Not yet available

G 500

Trim · 1998–2008 · M 113.965 E 50

Power
218 kW

Published directly in kW, at 5,500 rpm, in the generation's engine data table (218 kW = 296 PS).

[1]

Torque
456 N⋅m

At 2,800-4,000 rpm.

[1]

Kerb weight
Not yet available
0–100 km/h
9.7 s

Published directly as a 9.7-10.2 s range across markets/transmissions; the lowest figure is stored here.

[1]

Top speed
190 km/h

[1]

Fuel economy
Not yet available
CO₂
Not yet available
Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
4,966 cc

[1]

Boot volume
Not yet available
Seats
5
Engine
V8 · M 113.965 E 50
Drivetrain
Four-wheel drive

G 55 AMG Kompressor

Trim · 2004–2006 · M 113 E 55 ML

Power
350 kW

Published directly in kW, at 6,100 rpm, for the 2004-2006 build of the supercharged engine (350 kW = 476 PS). Later 2006-2012 revisions of the same engine reached 368 kW then 373 kW; this trim records the original 2004 launch tune.

[1]

Torque
700 N⋅m

At 2,650-4,500 rpm.

[1]

Kerb weight
2,580 kg

The only kerb weight the generation infobox gives is for the G 55 AMG specifically.

[1]

0–100 km/h
5.6 s

[1]

Top speed
210 km/h

Electronically limited.

[1]

Fuel economy
Not yet available
CO₂
Not yet available
Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
5,439 cc

[1]

Boot volume
Not yet available
Seats
5
Engine
V8, supercharged · M 113 E 55 ML
Drivetrain
Four-wheel drive

Sources & confidence

Every figure above carries a status. Nothing on this page is estimated without saying so, and nothing missing has been filled in with a guess.

Last verified
2026-09-03
Review status
Compiled from cited sources

Photography on this page is credited on each image. Tap theion a photograph for its author, licence and source.

References

Every sourced figure and every cited claim on this page, numbered. Wikipedia articles record the revision they were read at, because the article will have changed by the time you check it.

  1. [1]

    Mercedes-Benz G-Class. Wikipedia · revision 1371878970 · read 2026-09-03

    WikipediaCC BY-SA 4.0

    A single article covers the whole nameplate rather than one per generation, with per-generation infoboxes and a shared 'Technical data' engine table embedded as sections. Cited here with section anchors (#W463,_first_generation..., #W463,_second_generation..., #Technical_data, #G_63) to identify which part of the article a given figure comes from.
