BMW roundel

Generation

BMW M3 (E30)

BMW M3 (E30), 1986-1991

Produced
1986–1991
Code
E30
Designer
Claus Luthe

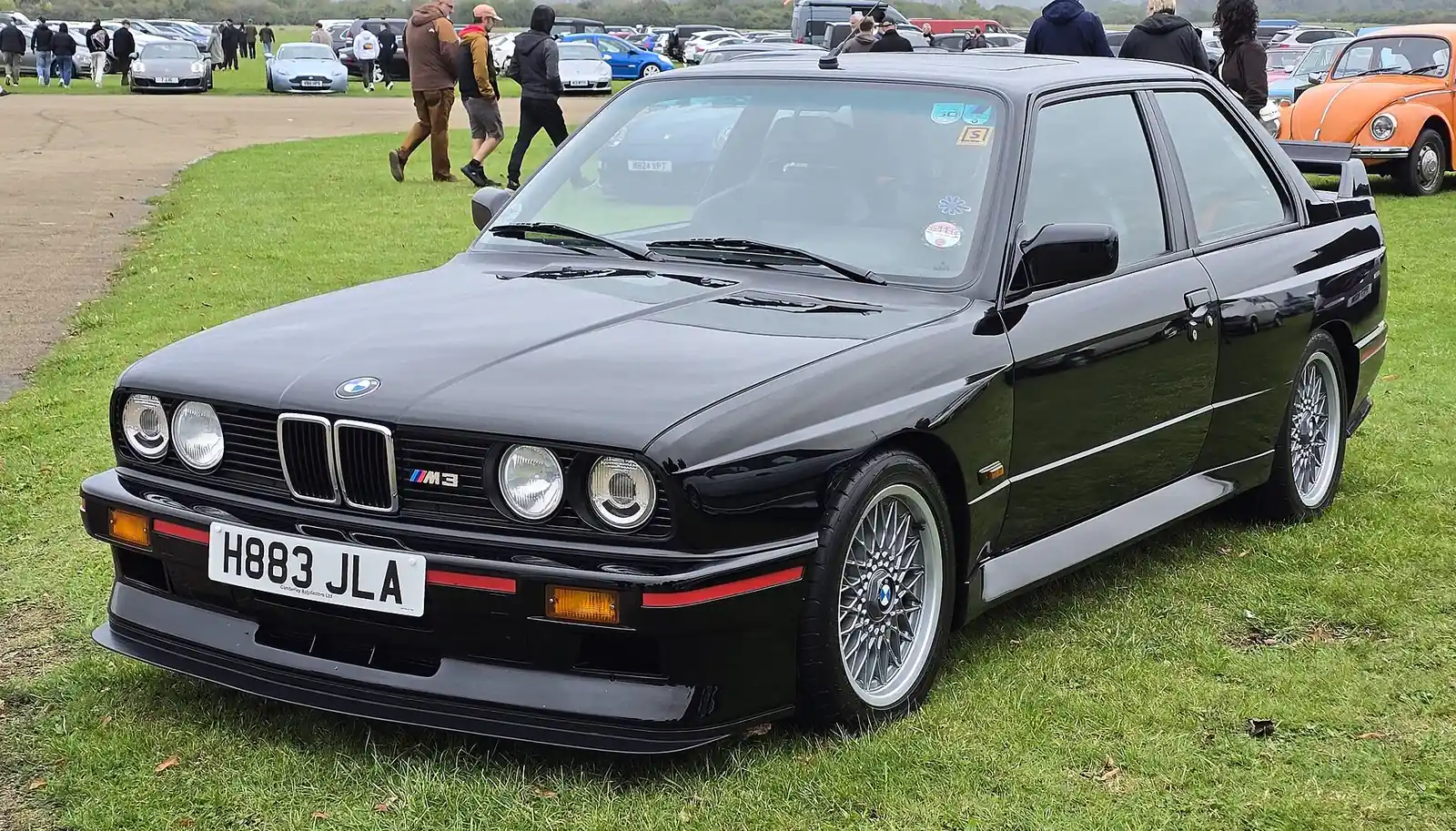

Black BMW E30 M3 coupe photographed from the front three-quarter angle on grass at a car show

Image credit

File
File:1991 BMW M3 Evo II BS O24.jpg
Author (attribution required)
MrWalkr

Powertrain

The car the M3 name exists for: a homologation special built to let BMW compete in Group A touring cars and the DTM, which required 5,000 road cars plus a further 500 “evolution” specials.[1] Under the bonnet sits the BMW S14, a high-revving four-cylinder built around a cylinder head derived from the M1 supercar’s straight-six and a block from the ordinary M10 four. The S14 is an unusually exotic engine for what was, on paper, a compliance exercise.

Three evolutions are recorded here: the standard 1986 M3, the mechanically revised Evolution II of 1988, and the 1990 Sport Evolution, whose enlarged 2.5-litre engine and adjustable aerodynamics were the final, most powerful factory version. No torque figure is published in the source for the base 1986 car, so that field is left empty rather than estimated from the later, better-documented Evolution models.

Kerb weight is recorded only at generation level: the one published figure covers a 1,165-1,360 kg range across the whole run rather than any single trim, from a period road test rather than a factory specification sheet.

Overview

Manufacturer
BMW
Produced
1986–1991
Model code
E30
Designer
Claus Luthe
Segment
S-segment (Europe) / Sports car (US)
Positioning
Premium
Assembly
Munich, Germany

Dimensions

Length
4,345 mm

[1]

Width
1,680 mm

[1]

Height
1,370 mm

[1]

Wheelbase
2,562 mm

[1]

Kerb weight
1,165 kg

Lowest of a published 1,165-1,360 kg range covering the whole E30 M3 run, cited to a 1987 Autoweek test; not attributed to one specific trim in the source, so recorded at generation level only.

[1]

M3

Trim · 1986–1990 · S14B23

Power
143 kW

Published as 195 PS for catalyst-equipped markets, converted at 1 PS = 0.73549875 kW. Cars sold without a catalytic converter were rated 200 PS (147.10 kW). No torque figure is published for this base engine in the source, so torque is omitted rather than estimated.

[1]

Torque
Not yet available
Kerb weight
Not yet available
0–100 km/h
Not yet available
Top speed
235 km/h

Published as 146 mph, converted at 1 mph = 1.609344 km/h.

[1]

Fuel economy
Not yet available
CO₂
Not yet available
Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
2,302 cc

A high-revving four-cylinder built from a BMW S38 six-cylinder head design and an M10 four-cylinder block, redlined at 7,250 rpm; developed as a Group A/DTM homologation special.

[1]

Boot volume
Not yet available
Seats
4
Engine
inline-4, DOHC · S14B23
Drivetrain
Rear-wheel drive

M3 Evolution II

Trim · 1988–1988 · S14B23 (Evo II)

Power
162 kW

At 6,750 rpm, published directly in kW.

[1]

Torque
245 N⋅m

At 4,750 rpm.

[1]

Kerb weight
Not yet available
0–100 km/h
Not yet available
Top speed
Not yet available
Fuel economy
Not yet available
CO₂
Not yet available
Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
2,302 cc

Same displacement as the standard M3, with a revised camshaft, pistons, compression ratio (raised to 11.0:1) and intake. 501 examples were built, March-May 1988.

[1]

Boot volume
Not yet available
Seats
4
Engine
inline-4, DOHC · S14B23 (Evo II)
Drivetrain
Rear-wheel drive

M3 Sport Evolution

Trim · 1990–1990 · S14B25

Power
175 kW

Published as 238 PS at 7,000 rpm, converted at 1 PS = 0.73549875 kW.

[1]

Torque
240 N⋅m

At 4,750 rpm.

[1]

Kerb weight
Not yet available
0–100 km/h
Not yet available
Top speed
248 km/h

Published as 154 mph, converted at 1 mph = 1.609344 km/h.

[1]

Fuel economy
Not yet available
CO₂
Not yet available
Drag coefficient
Not yet available
Frontal area
Not yet available
Displacement
2,467 cc

Also called 'Evo3'. Limited to 600 units, with an adjustable front splitter, rear wing and enlarged front bumper openings.

[1]

Boot volume
Not yet available
Seats
4
Engine
inline-4, DOHC · S14B25
Drivetrain
Rear-wheel drive

Sources & confidence

Every figure above carries a status. Nothing on this page is estimated without saying so, and nothing missing has been filled in with a guess.

Last verified
2026-09-08
Review status
Compiled from cited sources

Photography on this page is credited on each image. Tap theion a photograph for its author, licence and source.

References

Every sourced figure and every cited claim on this page, numbered. Wikipedia articles record the revision they were read at, because the article will have changed by the time you check it.

  1. [1]

    BMW M3. Wikipedia · revision 1373653902 · read 2026-09-08

    WikipediaCC BY-SA 4.0

    Single article covering all M3 generations by section (E30, E36, E46, F80, G80 etc.); slug-level citations for the E30 and E36 sections use anchors on this article rather than separate pages.
